Hand Tracking Button Trigger Zone

12 replies
3052 views

Try to use the button prefab "NearFieldButton" from the new oculus integration V12.0 package. Problem is the "Interactable State Changed(InteractableStateArgs)" in Button Control panel can be triggered by all three collider zones(Proximity, Contact, Action), whichever touched first. Anyone knows how to trigger the event on Action zone only? Thanks in advance!

C

cazforshort

Up and Coming

Could you just make the action zone bigger then the other zones or shrink the other zones down?
Theres a bug with the Ray casting though where proximity doesn't work. Shrinking it down will only fix the poking tool.

Q

Quacklin

Up and Coming

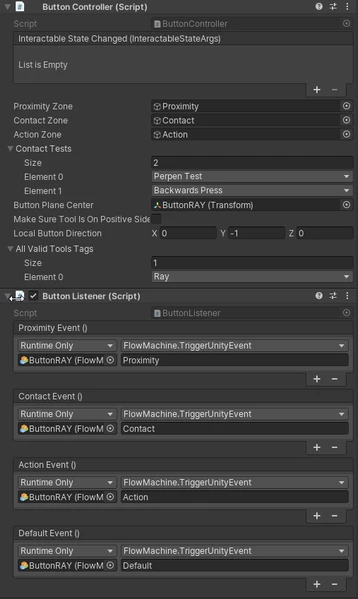

I recommend a helper script to split these events

using System.Collections;

using System.Collections.Generic;

using UnityEngine;

using OculusSampleFramework;

using UnityEngine.Events;

public class ButtonListener : MonoBehaviour

{

public UnityEvent proximityEvent;

public UnityEvent contactEvent;

public UnityEvent actionEvent;

public UnityEvent defaultEvent;

// Start is called before the first frame update

void Start()

{

GetComponent<ButtonController>().InteractableStateChanged.AddListener(InitiateEvent);

}

void InitiateEvent(InteractableStateArgs state)

{

if (state.NewInteractableState == InteractableState.ProximityState)

proximityEvent.Invoke();

else if (state.NewInteractableState == InteractableState.ContactState)

contactEvent.Invoke();

else if (state.NewInteractableState == InteractableState.ActionState)

actionEvent.Invoke();

else

defaultEvent.Invoke();

}

// Update is called once per frame

void Update()

{

}

I

IcemanInSouthAuthor

Up and Coming

Hi Quacklin, Thanks a lot for the detailed solution! It works perfectly! BTW, do you have any suggestion of how to add the grab function?

Q

Quacklin

Up and Coming

I'm struggling with the same question :'(
The same with getting the bone gameobjects to link my custom collier. I thought that would be more easy to get a grab function.

Q

Quacklin

Up and Coming

Okay got it.

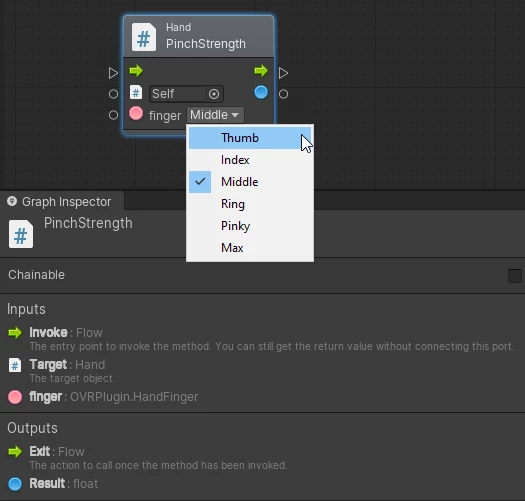

The script Hand on the spawned object HandRight and HandLeft have a function called "PinchStrength" with a Enumerator for "Index, Middle, Ring, Pinky and Max( haven't figured out what max does). They return a value between 0 and 1 when the get closer to the thumb.
I just used that to trigger an event when at least two values are 1 then grabbing is active. Everything less is release.

I

IcemanInSouthAuthor

Up and Coming

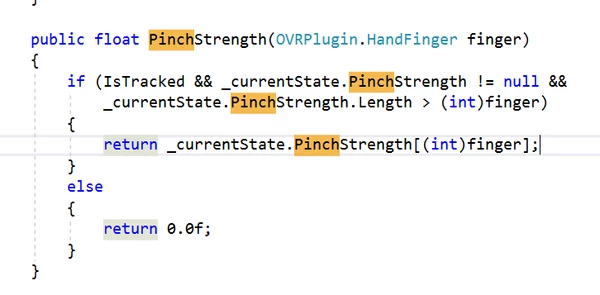

Do you mean the section in hand.cs?
