[Hand Tracking] FingerTipPokeTool Index does not follow my index

Hello everyone.
I created a simple scene with some hand tracking and added a "Interactable Tool Creator".
It creates some finger tip poke so I can interact with buttons but the tip does not follow my index finger tips.

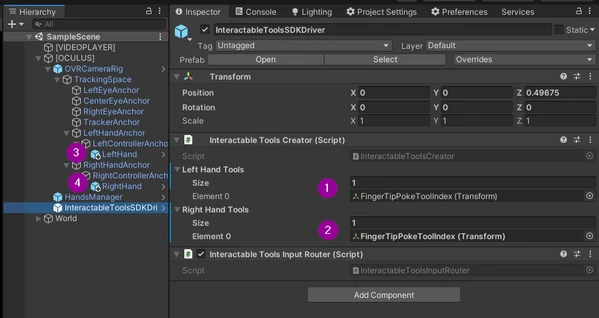

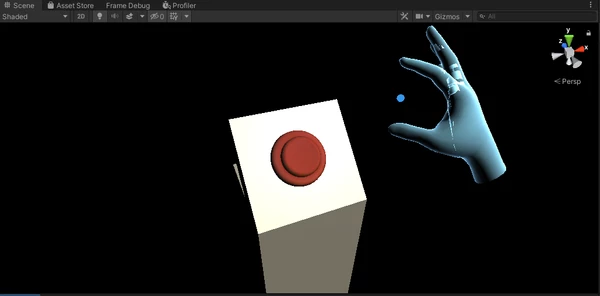

Here is a video recorded on the Oculus Quest and a screenshot of my project scene.

Video : https://imgur.com/a/snM3ms6






12 replies

FanghAuthor
Up and Coming
February 28, 2020
On solution seems to go to Edit>Project Setting>Time  and change Fixed Timestep to 0.005 and Maximum Allowed Timestep  to 0.05.

as described here : https://forums.oculusvr.com/developer/discussion/86423/hand-physics-capsules-not-following-the-fingers#latest

But this seems dangerous. Also why when Fixed Timestep is to 0.05 it does not work AT ALL (I mean, not 10x slower as we could expected) ?
Jazzy53
Participant
March 1, 2020
I seen your project video and screenshot. Its looking great.
Andrew55c
New Participant
May 1, 2020
Have you found a fix for this? Having the same issue :\
insominx
New Participant
September 2, 2020
I'm still getting this.  In FingerTipPokeTool.cs I see the following suspicious comment:
// NOTE: use time settings 0.0111111/0.02 to make collisions work correctly!
raytsang1120
New Participant
September 7, 2020
I fixed this issue by adding 2 lines here:

OVRSkeleton.cs
private void FixedUpdate()
...
if (capsuleGO.activeSelf)
{
capsuleGO.SetActive(false);                  //Added by Raymond Tsang
capsuleGO.SetActive(true);                  //Added by Raymond Tsang
capsule.CapsuleRigidbody.MovePosition(bone.position);
capsule.CapsuleRigidbody.MoveRotation(bone.rotation);
}
MDwornikowski
Participant
April 19, 2021

Apparently, if you edit oculus integtations code, hands will stop rendering on build, but will work with quest link. And even if you get the script back to a previous state or delete the whole Oculus folder and reimport new plugin again - it still won't render. The only solution I found is to make a new project and reimport all the assets. So I would not edit their scripts. I wasted 3 days looking for a solution. Thanks facebook dev team for ever mentioning that hand tracking will loose access if someone tries to fix your code

MDwornikowski
Participant
April 20, 2021

Update: ok, very cool. My life is a joke. The cause was different. Hand tracking won't load if you disable unity splash screen :)))) Why did I choose this career path. I will file a bug report if there's any energy left in me to spend on this

xml1324
New Participant
February 3, 2021


I fixed this issue by adding 2 lines here:

OVRSkeleton.cs
private void FixedUpdate()
...
if (capsuleGO.activeSelf)
{
capsuleGO.SetActive(false);                  //Added by Raymond Tsang
capsuleGO.SetActive(true);                  //Added by Raymond Tsang
capsule.CapsuleRigidbody.MovePosition(bone.position);
capsule.CapsuleRigidbody.MoveRotation(bone.rotation);
}


 This worked perfectly for me! Thank you so much!!
marcindwornikowski
Participant
May 12, 2022

And Btw this issue [this thread's] is still there even now, when Hand Tracking v2 is out and the quickfix works
