OpenXR Runtime

Hello,

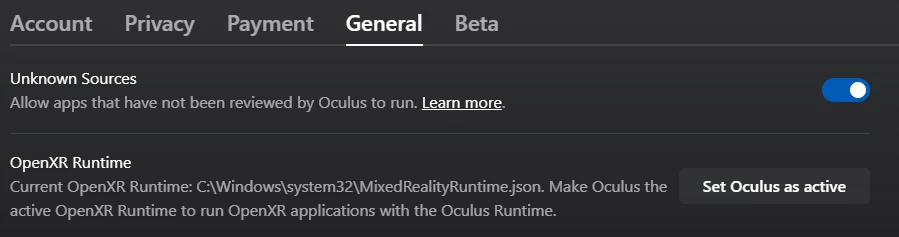

When trying to play any games on-air link which have worked perfectly in the past now won't work. It brings me to a black screen because my OpenXR needs to be set to active, in which case it's not. I tried clicking set oculus as active and it does nothing. I Tried looking at some things online and couldn't do too much about it. I have an image of what it says for reference. Any suggestions help. Thank You.

      14 replies

      Loady420
      New Participant
      January 9, 2022

      I ran into this problem just 3 days ago. I did a cold boot  removed my steam app from running then was able to set the Oculus as active tic. It greyed out ever so slightly its been working since then. Good lucky I have windows 11

      Ma5terGamer205Author
      New Participant
      January 9, 2022

      how did you cold boot the Oculus app? Did you uninstall the steamVR app?

      Loady420
      New Participant
      January 10, 2022

      I meant I pulled power from the PC and rebooted both. Then I removed all steam applications from running in background. I then restarted the oculus app and hard wired my headset. It asked me again to change the settings and I was able to click it.

      Gerfeso
      Participant
      January 17, 2022

      So the answer is that it won't let us set it if we have steam installed?
      That is ridiculous if true.

      lensmandave
      Honored Contributor
      January 17, 2022

      No, it means if Steam has become the active OpenXR app you just need to regain control via the Oculus app. It's very simple to reboot your PC without Steam running and restart the Oculus app to be able to set it.

      Intel Core i7 6700K @ 4.5GHz. Asus-Z170-PRO MB - Nvidia RTX 3080 ti - 16GB DDR4 2666MHZ HYPERX SAVAGE.
      kojack
      kojack
      Honored Contributor
      January 17, 2022

      Even that isn't always needed. Right now I'm swapping back and forth between WMR OpenXR, SteamVR OpenXR and Oculus OpenXR.

      WMR's Mixed Reality Portal (which the OP was running apparently) needs to be closed and reopened to detect it's lost control, since I can't find an option for it in the settings (need to restart it so the warning with a button appears). Oculus and SteamVR just need to move to another tab in settings then back and it will refresh.



      Author: Oculus Monitor , Auto Oculus Touch , Forum Dark Mode , Phantom Touch Remover , X-Plane Fixer Hardware: Threadripper 1950x, MSI Gaming Trio 2080TI, Asrock X399 Taich Headsets: Wrap 1200VR, DK1, DK2, CV1, Rift-S, GearVR, Go, Quest, Quest 2, Reverb G2, Quest 3
      kojack
      kojack
      Honored Contributor
      January 17, 2022

      Anyway, back to the op's problem, OpenXR isn't needed for Airlink. Right now I've got OpenXR set to my WMR Reverb G2 headset, but Airlink with my Quest 2 is working fine.

      OpenXR is only needed for OpenXR games, which are pretty rare at the moment.



      Perhaps it's an admin thing. What these OpenXR settings do is just change a registry key at HKEY_LOCAL_MACHINE\SOFTWARE\Khronos\OpenXR\1 to point to a json file for WMR, SteamVR or Oculus. That may be failing if you aren't using an admin account.

      Author: Oculus Monitor , Auto Oculus Touch , Forum Dark Mode , Phantom Touch Remover , X-Plane Fixer Hardware: Threadripper 1950x, MSI Gaming Trio 2080TI, Asrock X399 Taich Headsets: Wrap 1200VR, DK1, DK2, CV1, Rift-S, GearVR, Go, Quest, Quest 2, Reverb G2, Quest 3
        Jantastisch123
        New Participant
        May 2, 2023

        So do you need openXR installed on your device to run these openXR games, because i have watched many videos on how to fix it and nobody said, that you need to have openXR installed

        kojack
        kojack
        Honored Contributor
        May 3, 2023

        OpenXR doesn't really have a separate install. Meta, Valve and Microsoft have each made a version that now comes with their headset drivers. When an OpenXR game starts, it checks the windows registry to see which OpenXR provider is the one to use.

        For example, the actual OpenXR implementation is located at:

        Oculus: C:\Program Files\Oculus\Support\oculus-runtime\LibOVRRT64_1.dll

        SteamVR: C:\Program Files (x86)\Steam\steamapps\common\SteamVR\bin\vrclient_x64.dll

        WMR: C:\Program Files\WindowsApps\Microsoft.WindowsMixedReality.Runtime_112.2211.2002.0_x64__8wekyb3d8bbwe\x64\WinXrRuntime.dll

        As long as you have up to date drivers for your headset, it should be good to go.

        Author: Oculus Monitor , Auto Oculus Touch , Forum Dark Mode , Phantom Touch Remover , X-Plane Fixer Hardware: Threadripper 1950x, MSI Gaming Trio 2080TI, Asrock X399 Taich Headsets: Wrap 1200VR, DK1, DK2, CV1, Rift-S, GearVR, Go, Quest, Quest 2, Reverb G2, Quest 3
        Sylas
        Participant
        May 27, 2023

        Ok, then simply goto   X:\Oculus\Support\oculus-runtime and verify that the file  oculus_openxr_64.json is there, then go up to the address bar and copy the path in your clipboard, becuse you are going to paste it in the registry.  Open regedit, open \HKEY_LOCAL_MACHINE\SOFTWARE\Khronos\OpenXR\1   on the right you will see  activeruntime   double click it and then paste the path of your oculus directory. mine looks like this  D:\Oculus\Support\oculus-runtime\oculus_openxr_64.json



        dylandila
        New Participant
        July 10, 2023

        I tried doing this and OpenXR isn't in my registry editor. I went to the Khronos folder in the registry editor in HKEY_LOCAL_MACHINE\SOFTWARE\Khronos and there is no OpenXR folder. Only OpenCL and Vulkan.

        Sylas
        Participant
        July 12, 2023

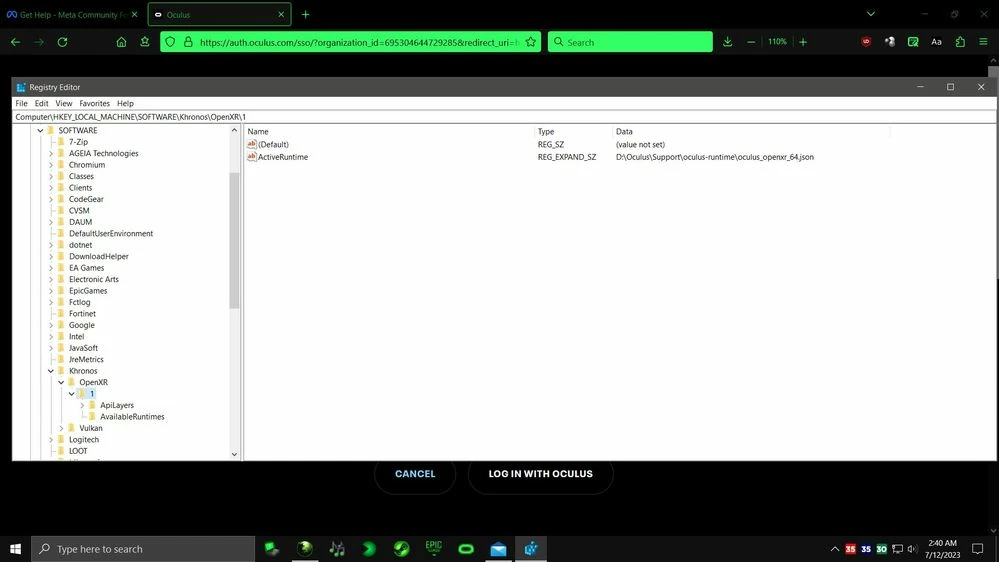

        Make your registry look like mine...use the pic and simply create the same folder structure(s).  Of course this is only regarding the khronos, openxr, and 1 directories.  In the "1" directory is where you would create a new string, and in that string you would paste the location of your oculus, support, .....openxr_64.json file.



        Sylas
        Participant
        July 12, 2023

        I made a mistake..  Dont create a new string, create a new "expandable string value"  ...name it  "ActiveRuntime" and in the value data, paste or type in the location of your openxr_64.json
