Bug report: Grabbable not positioning properly when force releasing then force selecting
Unity Version 2022.3.40f1
Meta XR Interaction SDK Version 69.0.2
I am currently using hand tracking with a Grabbable interactable. The interactable is a gun that I do not want the player to be able to drop so I use ForceSelect on spawn to bring the gun to the players hand. I want the player to be able to swap hands by grabbing the handle of the gun so I have a second mirrored Hand Grab Interactive with both max interactors set to 1. The main Grababble script is also set to max grab points 1.
I can grab the gun with my left hand and swap fine. It is when I then grab the gun back from my left hand when the Grabbable then gets set to world point zero, and my gun objec moves around on a pivot from world zero. The only way to fix this is to open the oculus menu then resume, the gun then teleports into the hand it should be in.
I reset the local position and rotation of my grabbables because they break when the application loses focus and start pivoting from world zero. This fix works for when I open the oculus menu and return but not for when grabbing back the gun from my left hand.
private void SwapHands(eHand newHand) {
_secondHandleGrabbed = false;
_interactorLeft.ForceRelease();
_interactorRight.ForceRelease();
if (newHand == eHand.Right) {
_hand = eHand.Right;
_interactorRight.ForceSelect(_handGrabbableRight, false);
} else {
_hand = eHand.Left;
_interactorLeft.ForceSelect(_handGrabbableLeft, false);
}
_mainGrabbable.transform.SetLocalPositionAndRotation(Vector3.zero, Quaternion.identity);
_handGrabbableRight.transform.SetLocalPositionAndRotation(Vector3.zero, Quaternion.identity);
_handGrabbableLeft.transform.SetLocalPositionAndRotation(Vector3.zero, Quaternion.identity);
}
private void OnGunGrabbedLeft(PointerEvent evnt) {
switch (evnt.Type) {
case PointerEventType.Select:
print("grabbed with left");
SwapHands(eHand.Left);
break;
}
}
private void OnGunGrabbedRight(PointerEvent evnt) {
switch (evnt.Type) {
case PointerEventType.Select:
print("grabbed with right");
SwapHands(eHand.Right);
break;
}
}
private void OnInputFocusAcquired() {
_interactorLeft.ForceRelease();
_interactorRight.ForceRelease();
if (_hand == eHand.Right) {
_interactorRight.ForceSelect(_handGrabbableRight, false);
} else {
_interactorLeft.ForceSelect(_handGrabbableLeft, false);
}
_mainGrabbable.transform.SetLocalPositionAndRotation(Vector3.zero, Quaternion.identity);
_handGrabbableRight.transform.SetLocalPositionAndRotation(Vector3.zero, Quaternion.identity);
_handGrabbableLeft.transform.SetLocalPositionAndRotation(Vector3.zero, Quaternion.identity);
}
Edit: Added images for extra context

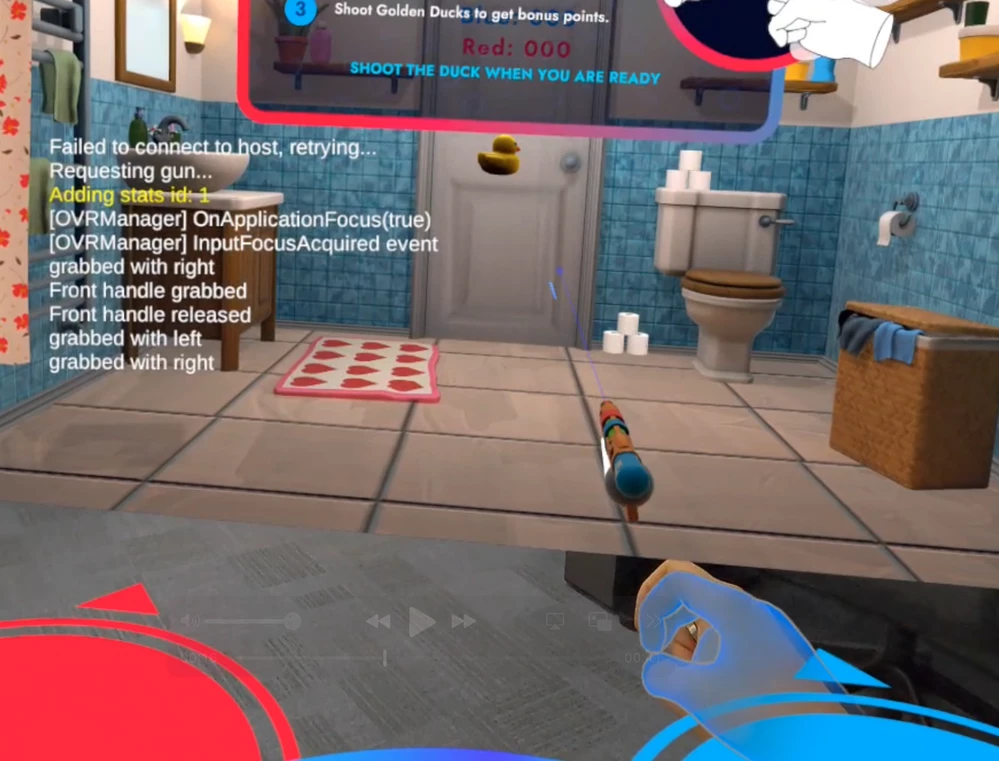

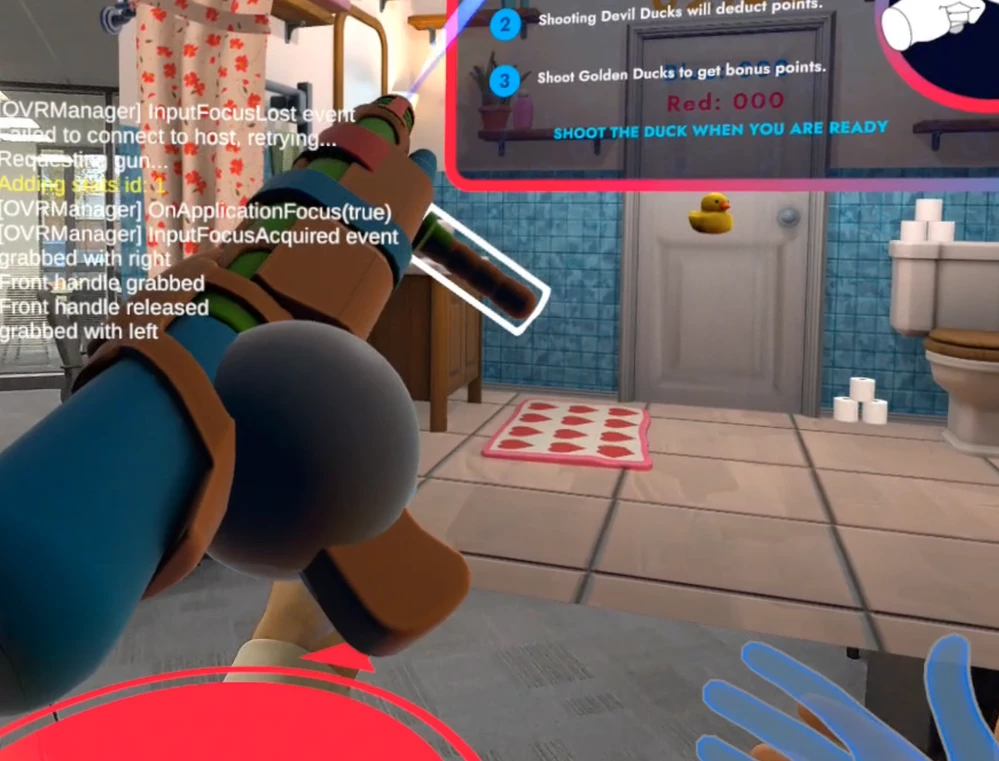

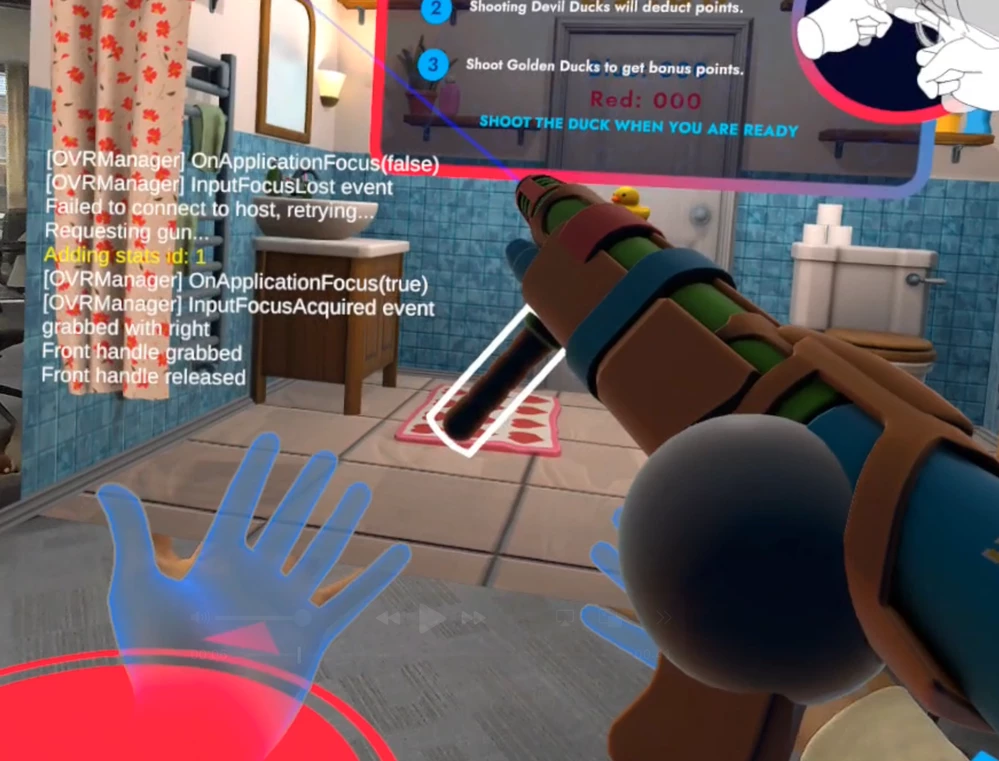

Default held in right handGrabbed with left handGrabbed back into right hand, gun starts rotating from world zero
