OVRCamera BLACK (I hear sound)

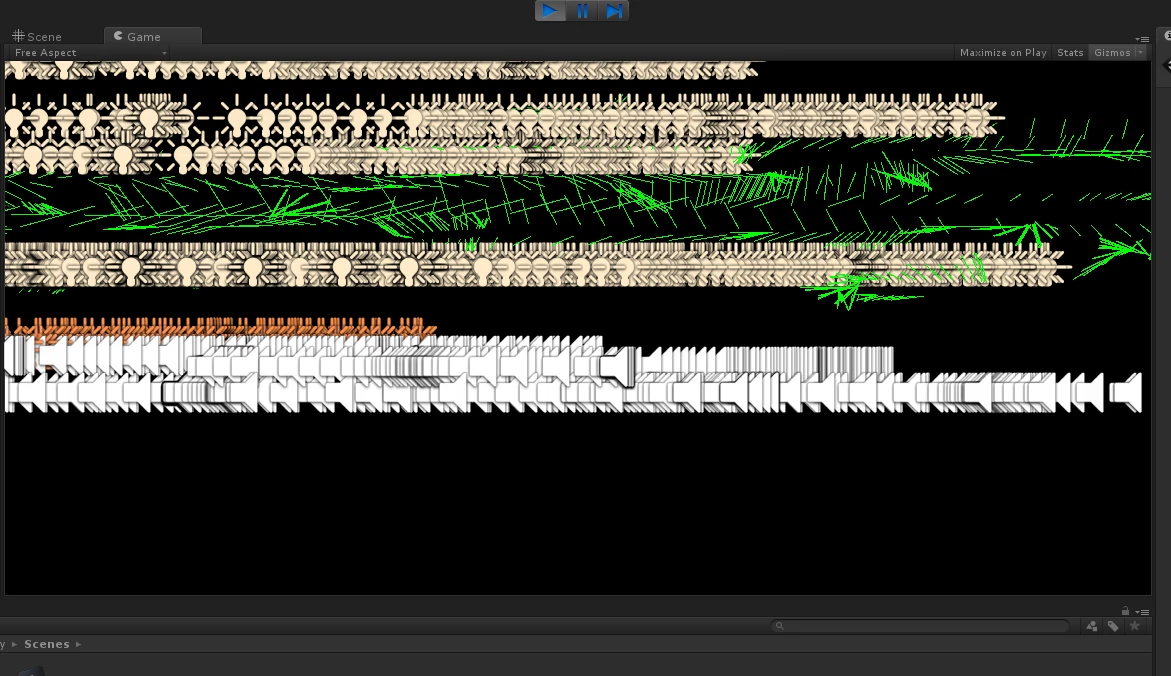

UPDATE! I restarted unity and I popped out the GAME tab and pressed play and it was in there BUT then I pop it back in and its not... then I pop back out and still not in there... I have to restart Unity each time I want to have it seen...

Any chance in knowing what this could be??? I reinstalled EVERYTHING and still this bug won't fix.

UPDATE! Main Camera works just fine but when I add OVRCamera.cs into the mix, I get nothing. Can someone tell me if this script is a problem?

/************************************************************************************

Filename : OVRCamera.cs
Content : Interface to camera class
Created : January 8, 2013
Authors : Peter Giokaris, David Borel

Copyright : Copyright 2014 Oculus VR, Inc. All Rights reserved.

Licensed under the Oculus VR Rift SDK License Version 3.1 (the "License");
you may not use the Oculus VR Rift SDK except in compliance with the License,
which is provided at the time of installation or download, or which
otherwise accompanies this software in either electronic or hard copy form.

You may obtain a copy of the License at

http://www.oculus.com/licenses/LICENSE-3.1

Unless required by applicable law or agreed to in writing, the Oculus VR SDK
distributed under the License is distributed on an "AS IS" BASIS,
WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
See the License for the specific language governing permissions and
limitations under the License.

************************************************************************************/

using UnityEngine;
using OVR;
using System.Collections.Generic;
using System.Collections;
using System.Runtime.InteropServices;

[RequireComponent(typeof(Camera))]

/// <summary>
/// OVRCamera is used to render into a Unity Camera class.
/// This component handles reading the Rift tracker and positioning the camera position
/// and rotation. It also is responsible for properly rendering the final output, which
/// also the final lens correction pass.
/// </summary>
public class OVRCamera : MonoBehaviour
{
/// <summary>
/// Types of render events we can send to the native rendering plugin.
/// </summary>
private enum EventType
{
BeginFrame = 0,
GetLeftEyePose = 1,
GetRightEyePose = 2,
EndFrame = 3,
};

#region Plugin Imports
private const string strOvrLib = "OculusPlugin";

[DllImport(strOvrLib)]
static extern bool OVR_SetTexture(int id, System.IntPtr texture, float scale = 1);
[DllImport(strOvrLib)]
static extern bool OVR_UnityGetModeChange();
[DllImport(strOvrLib)]
static extern bool OVR_UnitySetModeChange(bool isChanged);
[DllImport(strOvrLib)]
static extern void OVR_SetEndFrameInPresent(bool isEnabled);
[DllImport(strOvrLib)]
static extern ovrPosef OVR_GetRenderPose();
[DllImport(strOvrLib)]
static extern void OVR_SetMacEditorPlay(bool isEditorPlay);
[DllImport(strOvrLib)]
static extern void OVR_SetDX11EditorPlay(bool isEditorPlay);
#endregion

#region Private Member Variables
// We will search for camera controller and set it here for access to its members
private OVRCameraController CameraController = null;
// 0 for left, 1 for right.
internal int EyeId;
// Tracks if we need to reset state due to mode switches or a lost graphics device
internal bool NeedsSetTexture;
// We want to check if the screen mode is changed
internal bool wasFullScreen;
#endregion

#region Public Member Variables
/// <summary>
// camera position, from root of camera to neck (translation only)
/// </summary>
[HideInInspector]
public Vector3 NeckPosition = Vector3.zero;
/// <summary>
// From neck to eye (rotation and translation; x will be different for each eye)
/// </summary>
[HideInInspector]
public Vector3 EyePosition = new Vector3(0.0f, Hmd.OVR_DEFAULT_NECK_TO_EYE_VERTICAL, Hmd.OVR_DEFAULT_NECK_TO_EYE_HORIZONTAL);

/// <summary>
/// True if this camera corresponds to the right eye.
/// </summary>
public bool RightEye = false;
#endregion

#region Static Members
/// <summary>
// We will grab the actual orientation that is used by the cameras in a shared location.
// This will allow multiple OVRCameraControllers to eventually be used in a scene, and
// only one orientation will be used to syncronize all camera orientation
/// </summary>
static private Quaternion CameraOrientation = Quaternion.identity;
/// <summary>
// This is absolute camera location from vision
/// </summary>
static private Vector3 CameraPosition = Vector3.zero;
/// <summary>
// Set an offset to the camera that will adjust our location from the
// cameras center of origin (set when reset is called)
/// </summary>
static private Vector3 CameraPositionOffset = Vector3.zero;
/// <summary>
// Set an offset to the camera that will adjust our rotation from the
// camera's default orientation (set when reset is called)
/// </summary>
static private Quaternion CameraOrientationOffset = Quaternion.identity;
/// <summary>
// List of game objects to update with local camera center of origin
// {allows for objects that are at 0,0,0 relative to the camera to stay
// rendered in camera space, to allow for visual aid).
/// </summary>
static private List<OVRCameraGameObject> CameraLocalSetList = new List<OVRCameraGameObject>();

/// <summary>
/// An optional texture to which the undistorted image will be rendered.
/// </summary>
static public RenderTexture[] CameraTexture = new RenderTexture[2];
#endregion

#region Monobehaviour Member Functions
void Awake()
{
// Force right/left state for specifically-named objects.
if (gameObject.name.Contains("Right"))
RightEye = true;
if (gameObject.name.Contains("Left"))
RightEye = false;

EyeId = (RightEye) ? 1 : 0;

// Make sure we render to the whole target.
camera.rect = new Rect(0, 0, 1, 1);
#if UNITY_EDITOR_OSX
OVR_SetEndFrameInPresent(false);
OVR_SetMacEditorPlay(true);
#elif UNITY_STANDALONE_OSX
OVR_SetMacEditorPlay(false);
#elif UNITY_EDITOR_WIN
OVR_SetDX11EditorPlay(true);
#endif
}

void Start()
{
NeedsSetTexture = true;
wasFullScreen = Screen.fullScreen;
StartCoroutine(CallbackCoroutine());

// Get the OVRCameraController
CameraController = gameObject.transform.parent.GetComponent<OVRCameraController>();

if(CameraController == null)
{
Debug.LogWarning("OVRCameraController not found!");
this.enabled = false;
return;
}

if (!CameraController.UseCameraTexture)
return;

#if (UNITY_EDITOR_OSX || UNITY_STANDALONE_OSX)
// if AA & AF are disabled, step down RT scale for a FPS boost
if (QualitySettings.anisotropicFiltering == 0 && QualitySettings.antiAliasing == 0)
CameraController.CameraTextureScale = Mathf.Min(CameraController.CameraTextureScale, 0.7f);
#endif

// This will scale the render texture based on ideal resolution
CreateRenderTexture(EyeId, CameraController.CameraTextureScale);

camera.targetTexture = CameraTexture[EyeId];
OldScale = CameraController.ScaleRenderTarget;
}

static int PendingEyeCount = 0;

void OnPreCull()
{
if (CameraTexture[EyeId] == null)
return;

if (PendingEyeCount == 0)
{
GL.IssuePluginEvent((int)EventType.BeginFrame);
}

SetCameraOrientation();

if (PendingEyeCount < 2)
PendingEyeCount++;

}

float OldScale = -1f;

void OnCoroutine()
{
if (PendingEyeCount > 0)
PendingEyeCount--;

NeedsSetTexture = NeedsSetTexture || ((CameraController.ScaleRenderTarget != OldScale) || (Screen.fullScreen != wasFullScreen) || OVR_UnityGetModeChange());

if (NeedsSetTexture)
{
if (CameraTexture[EyeId].GetNativeTexturePtr() == System.IntPtr.Zero)
return;

OVR_SetTexture(EyeId, CameraTexture[EyeId].GetNativeTexturePtr(), CameraController.ScaleRenderTarget);

OldScale = CameraController.ScaleRenderTarget;
wasFullScreen = Screen.fullScreen;

if (PendingEyeCount == 0)
OVR_UnitySetModeChange(false);

NeedsSetTexture = false;
}

if (PendingEyeCount == 0)
GL.IssuePluginEvent((int)EventType.EndFrame);
}

IEnumerator CallbackCoroutine()
{
while (true)
{
OVRDevice.HMD = Hmd.GetHmd();
#if UNITY_EDITOR_WIN || (!UNITY_EDITOR_OSX && UNITY_STANDALONE_OSX)
yield return new WaitForEndOfFrame();
#else
yield return null;
#endif
OnCoroutine();
}
}
#endregion

#region Internal Functions
/// <summary>
/// Sets the camera orientation.
/// </summary>
void SetCameraOrientation()
{
// Main camera has a depth of 0, so it will be rendered first
if(camera == CameraController.CameraMain)
{
if(CameraController.TrackerRotatesY == true)
{
Vector3 a = camera.transform.rotation.eulerAngles;
a.x = 0;
a.z = 0;
transform.parent.transform.eulerAngles = a;
}

ovrPosef renderPose = OVR_GetRenderPose();

if (CameraController.EnablePosition)
CameraPosition = renderPose.Position.ToVector3();

bool useOrt = (CameraController.EnableOrientation &&
!(CameraController.TimeWarp && CameraController.FreezeTimeWarp));
if(useOrt)
CameraOrientation = renderPose.Orientation.ToQuaternion();
}

// Calculate the rotation Y offset that is getting updated externally
// (i.e. like a controller rotation)
float yRotation = 0.0f;
CameraController.GetYRotation(ref yRotation);
Quaternion qp = Quaternion.Euler(0.0f, yRotation, 0.0f);
Vector3 dir = qp * Vector3.forward;
qp.SetLookRotation(dir, Vector3.up);

// Multiply the camera controllers offset orientation (allow follow of orientation offset)
Quaternion orientationOffset = Quaternion.identity;
CameraController.GetOrientationOffset(ref orientationOffset);
qp = orientationOffset * qp * CameraOrientationOffset;

// Multiply in the current HeadQuat (q is now the latest best rotation)
Quaternion q = qp * CameraOrientation;

// * * *
// Update camera rotation
camera.transform.rotation = q;

// * * *
// Update camera position (first add Offset to parent transform)
camera.transform.localPosition = NeckPosition;

// Adjust neck by taking eye position and transforming through q
// Get final camera position as well as the clipping difference
// (to allow for absolute location of center of camera grid space)
Vector3 newCamPos = Vector3.zero;
CameraPositionOffsetAndClip(ref CameraPosition, ref newCamPos);

// Update list of game objects with new CameraOrientation / newCamPos here
// For example, this location is used to update the GridCube
foreach(OVRCameraGameObject obj in CameraLocalSetList)
{
if(obj.CameraController.GetCameraDepth() == camera.depth)
{
// Initial difference
Vector3 newPos = -(qp * CameraPositionOffset);
// Final position
newPos += camera.transform.position;

// Set the game object info
obj.CameraGameObject.transform.position = newPos;
obj.CameraGameObject.transform.rotation = qp;
}
}

// Adjust camera position with offset/clipped cam location
camera.transform.localPosition += Quaternion.Inverse(camera.transform.parent.rotation) * qp * newCamPos;

Vector3 newEyePos = Vector3.zero;
newEyePos.x = EyePosition.x;
camera.transform.localPosition += camera.transform.localRotation * newEyePos;
}

/// <summary>
/// Based on offset and clip values, adjust camera position
/// </summary>
/// <param name="inCam">In cam.</param>
/// <param name="outCam">Out cam.</param>
void CameraPositionOffsetAndClip(ref Vector3 inCam, ref Vector3 outCam)
{
outCam = inCam - CameraPositionOffset;

}

#endregion

#region Public Functions
/// <summary>
/// Call this in CameraController to set up the ideal FOV as
/// defined by the SDK
/// </summary>
/// <returns>The ideal FOV.</returns>
public float GetIdealVFOV()
{
int resH = 0; int resV = 0; float fovH = 0; float fovV = 0;
OVRDevice.GetImageInfo(ref resH, ref resV, ref fovH, ref fovV);

return fovV;
}

/// <summary>
/// Calculates the aspect ratio.
/// </summary>
/// <returns>The aspect ratio.</returns>
public float CalculateAspectRatio()
{
int resH = 0; int resV = 0; float fovH = 0; float fovV = 0;
OVRDevice.GetImageInfo(ref resH, ref resV, ref fovH, ref fovV);

return (float)resH / (float)resV;
}

/// <summary>
/// Gets the ideal resolution.
/// </summary>
/// <returns>The ideal resolution.</returns>
public void GetIdealResolution(ref int w, ref int h)
{
float fovH = 0; float fovV = 0;
OVRDevice.GetImageInfo(ref w, ref h, ref fovH, ref fovV);
}

/// <summary>
/// Creates the render texture.
/// </summary>
/// <param name="scale">Scale.</param>
public void CreateRenderTexture(int i, float scale)
{
// Set CameraTextureScale (increases the size of the texture we are rendering into
// for a better pixel match when post processing the image through lens distortion)
// If CameraTextureScale is not 1.0f, create a new texture and assign to target texture
// Otherwise, fall back to normal camera rendering

if (CameraTexture != null)
return;

int w = 0;
int h = 0;

GetIdealResolution(ref w, ref h);

w = (int)((float)w * scale);
h = (int)((float)h * scale);

if (CameraTexture != null)
DestroyImmediate(CameraTexture);

CameraTexture = new RenderTexture(w, h, 24, (camera.hdr) ? RenderTextureFormat.ARGBFloat : RenderTextureFormat.Default);
CameraTexture.antiAliasing = (QualitySettings.antiAliasing == 0) ? 1 : QualitySettings.antiAliasing;

CameraTexture.Create();
}
#endregion

#region Vision Functions
/// <summary>
/// Mainly to be used to reset camera position orientation
/// camOffset will move the center eye position to an optimal location
/// clampX/Y/Z will zero out the offset that is used (restricts offset in a given axis)
/// </summary>
/// <param name="posScale">Scale for positional change.</param>
/// <param name="posOffset">Positional offset.</param>
/// <param name="posOffset">Positional offset.</param>
/// <param name="posOffset">Positional offset.</param>
static public void ResetCameraPositionOrientation(Vector3 posScale, Vector3 posOffset, Vector3 ortScale, Vector3 ortOffset)
{
Vector3 camPos = Vector3.zero;
Quaternion camO = Quaternion.identity;
OVRDevice.GetCameraPositionOrientation(ref camPos, ref camO, OVRDevice.PredictionTime);

CameraPositionOffset = Vector3.Scale(camPos, posScale) - posOffset;

Vector3 euler = Quaternion.Inverse(camO).eulerAngles;
CameraOrientationOffset = Quaternion.Euler(Vector3.Scale(euler, ortScale) - ortOffset);
}

/// <summary>
/// Set offset directly (for initial positioning that reflects the players
/// eye location
/// </summary>
/// <param name="offset">Offset.</param>
static public void SetCameraPositionOffset(Vector3 offset)
{
CameraPositionOffset = -offset;
}

/// <summary>
/// Adds to local camera set list.
/// </summary>
/// <param name="obj">Object.</param>
static public void AddToLocalCameraSetList(ref OVRCameraGameObject obj)
{
CameraLocalSetList.Add(obj);
}

/// <summary>
/// Removes from local camera set list.
/// </summary>
/// <param name="obj">Object.</param>
static public void RemoveFromLocalCameraSetList(ref OVRCameraGameObject obj)
{
CameraLocalSetList.Remove(obj);
}

/// <summary>
/// Gets the camera orientation.
/// </summary>
/// <param name="orientation">Orientation.</param>
static public void GetCameraOrientation(ref Quaternion orientation)
{
orientation = CameraOrientation;
}

/// <summary>
/// Gets the absolute camera from vision position.
/// </summary>
/// <param name="pos">Position.</param>
static public void GetAbsoluteCameraFromVisionPosition(ref Vector3 pos)
{
pos = CameraPosition;
}

/// <summary>
/// Gets the relative camera from vision position.
/// Takes into account position offset.
/// </summary>
/// <param name="pos">Position.</param>
static public void GetRelativeCameraFromVisionPosition(ref Vector3 pos)
{
pos = CameraPosition - CameraPositionOffset;
}
#endregion
}


/// <summary>
/// OVR camera game object.
/// Used to extend a GameObject for updates within an OVRCamera
/// </summary>
public class OVRCameraGameObject
{
public GameObject CameraGameObject = null;
public OVRCameraController CameraController = null;
}

If you're starting with a standard camera and then adding the OVRCamera script onto it, that's probably the issue. Try deactivating your normal camera, and then dragging in an OVRCameraController prefab (in OVR/Prefabs) which comes with 2 cameras and a controller that are carefully pre-configured to work out-of-the-box.

HUGE UPDATE! I managed to get it to work flawlessly when the window is POPPED OUT... but when I pop the window back in - it glitches (game mode) Is there a fix to this? Im almost there

I CANT TAKE THIS ANYMORE :(

How about some real information, instead of raging on about a screwup you made because you're in over your head.

For instance, which sdk version? Unity version? OS? GPU? Driver date?

And what about the demo project Tuscany? Does it work?

"Lane" wrote:
How about some real information, instead of raging on about a screwup you made because you're in over your head.

For instance, which sdk version? Unity version? OS? GPU? Driver date?

And what about the demo project Tuscany? Does it work?

Hi thanks for the reply. The Demo doesn't work, no... nothing works. I am usually very good at fixing these types of things but I am completely stumped. Only Main Camera works, but no OVR prelab will work. It worked find last night and weeks before but I did add a line of code to get the camera to move where your head moves and that complied wrong and that is when all the issues happened...

I reinstalled everything, removed all projects, basically brand new everything. I am able to use First Person Controller with the main camera and move around and jump but the issue is the OVRCamera when I load that up it just freezes everything...

GPU has all drivers updated, Windows 7 Ultimate is what I use, I am in Unity Version 4.5 - SDK is up to date.

If you are using the latest SDK and did not update from 0.3 to 0.4 around the time of this all screwing up and the Tuscany demo does not work in the editor then that means that no demo's should work, regardless of whether its a Unity demo or not.

Is that the case?

How is your OVRCameraController set up? Please try the following steps:
1) Make sure your Unity version is 4.5.2f1.
2) Create a new project.
3) Import OculusUnityIntegrationTuscanyDemo.unitypackage
4) Open Assets/Tuscany/Scenes/VRDemo_Tuscany
5) Make sure DX11 is not enabled. You can disable it by clicking Edit > Project Settings > Player > Other and unchecking "Use Direct3D 11".
6) Make sure Direct Display Mode is disabled. You can disable it in the Oculus Configuration Utility by clicking Tools > Rift Display Mode... > Extend Desktop to the HMD > Apply > Close.
7) Press play

Does the issue still occur there? If so, does it still occur if you build and run a standalone player?
