Quest Runtime Optimizer fails to analyze captured frame

  • August 7, 2025
  • 3 replies
  • 358 views

I am trying to use the Quest Runtime Optimizer (v0.1.0 from the asset store) on an OpenXR project with Unity 2022.3.54f1.
I am building and deploying an apk to a Meta Quest 3 (version 79.0).

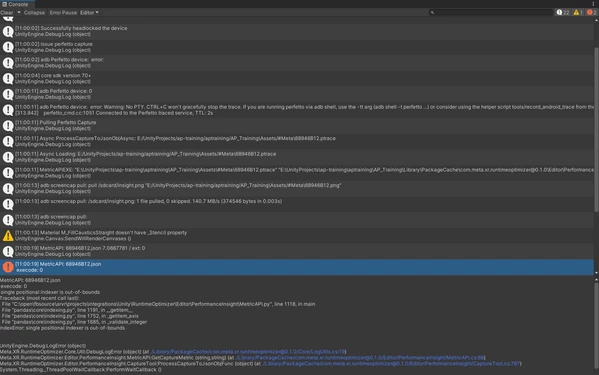

The Scan GameObjects functionnality works fine. However, when I try to "Capture Frame" from the Quest Runtime Optimizer editor windows, I get the following error:

MetricAPI: 68946B12.json
 execode: 0
 single positional indexer is out-of-bounds
Traceback (most recent call last):
  File "C:\open\fbsource\arvr\projects\integrations\Unity\RuntimeOptimizer\Editor\PerformanceInsight\MetricAPI.py", line 1118, in main
  File "pandas\core\indexing.py", line 1191, in __getitem__
  File "pandas\core\indexing.py", line 1752, in _getitem_axis
  File "pandas\core\indexing.py", line 1685, in _validate_integer
IndexError: single positional indexer is out-of-bounds


UnityEngine.Debug:LogError (object)
Meta.XR.RuntimeOptimizer.Core.Util:DebugLogError (object) (at ./Library/PackageCache/com.meta.xr.runtimeoptimizer@0.1.0/Core/LogUtils.cs:19)
Meta.XR.RuntimeOptimizer.Editor.PerformanceInsight.MetricAPI:GetCaptureMetric (string,string) (at ./Library/PackageCache/com.meta.xr.runtimeoptimizer@0.1.0/Editor/PerformanceInsight/MetricAPI.cs:68)
Meta.XR.RuntimeOptimizer.Editor.PerformanceInsight.CaptureTool:ProcessCaptureToJsonObjFunc (object) (at ./Library/PackageCache/com.meta.xr.runtimeoptimizer@0.1.0/Editor/PerformanceInsight/CaptureTool.cs:787)
System.Threading._ThreadPoolWaitCallback:PerformWaitCallback ()

The captured frame appears in the Quest Runtime Optimizer editor windows but when I click on it, I get a second error:

Failed to generate perfetto Analysis for 68946B12
UnityEngine.Debug:LogError (object)
Meta.XR.RuntimeOptimizer.Core.Util:DebugLogError (object) (at ./Library/PackageCache/com.meta.xr.runtimeoptimizer@0.1.0/Core/LogUtils.cs:19)
Meta.XR.RuntimeOptimizer.Editor.RuntimeOptimizerWindow:OnGUI () (at ./Library/PackageCache/com.meta.xr.runtimeoptimizer@0.1.0/Editor/RuntimeOptimizer.cs:2205)
UnityEngine.GUIUtility:ProcessEvent (int,intptr,bool&)

Any help would be appreciated.

    This topic has been closed for replies.

    3 replies

    fullyjonas
    New Participant
    August 18, 2025

    +1 I get the same error

      sylvainchagueAuthor
      New Participant
      August 18, 2025

      Interestingly, while it still doesn't works on my Quest 3, it works perfectly fine on my Quest Pro.

      jaytheMan
      Meta Employee
      October 27, 2025

      Hi! the Error indicates there is missing GPU data.
      Could you re-launch the app using the "Launch" button?

      The GPU profiling service will need to be enabled before apk starts.
      you can also run "adb shell ovrgpuprofiler -e"  manually to enable before apk launch

      We are also working on to improve these issues.

      Thank you!
