stereo seperation and stereo convergence with the Unity camera and a custom renderer

I have created a distributed ray tracer using a shader in Unity. I would like to show this in stereo and be able to navigate with my Oculus Rfit.

What I have done so far is create two identical quads which I assign to the LeftAnchor and the RightAnchor in the OVRCameraRig. I add a material to each quad which uses the same shader.  I create a left and right layer and assign the culling mask for each eye to each layer. I made sure the quads are large enough that they fill the FOV when I put the HMD on.  In my shader I set the cameras to be +- 0.0325m apart along the right camera axis.  This gives me stereo and it looks quite awesome with my real time ray tracer.

However, I'm not sure if I am doing things ideally.  I notice that when I enable VR support in player settings that the Unity Camera ads options stereoSeperation and stereoConvergence. How are these options used in Unity?

Is am a bit surprised and confused by the stereoConvergence option. Currently my left and right cameras have the same axis e.g. forward points in the same direction so I don't think they ever converge.  The default stereoConvergence in unity is 10 which I think means they converge at 10 meters?  Is this really what Unity does?  Should I be implementing convergence in my shader for a better stereo effect? I would imagine that with 64mm IPD that a convergence at 10m would have no significant effect.  I perhaps naively assume that the left and right eye could be treated as two cameras with the same axis with just a different position so they never converge.  How can any convergence be assumed without eye tracking?

If anyone has any other suggestion on how I should implement my ray tracing shader for stereo in Unity I would be grateful for your comments.

Here is my main code assigned to the OVRCameraRig for navigation and setting up the shader each frame.

Start
        //left and right are the names of quads assigned to the left and right eye
        rendl = GameObject.Find ("left").GetComponent<Renderer> ();

        rendr = GameObject.Find ("right").GetComponent<Renderer> ();










Update
        //I use the LeftEyeAnchor for now because the Camera is the same as the RightEyeAnchor as far as I know
        Transform tran = GameObject.Find ("LeftEyeAnchor").transform;

        //left hand to right hand camera transforms ?

        tran.Rotate (new Vector3 (0, 180, 0));

        tran.localRotation = new Quaternion (-tran.localRotation.x, tran.localRotation.y, tran.localRotation.z, -tran.localRotation.w);



        Vector4 up = GameObject.Find ("LeftEyeAnchor").transform.up;

        Vector4 right = GameObject.Find ("LeftEyeAnchor").transform.right;

        Vector4 forward = GameObject.Find ("LeftEyeAnchor").transform.forward;

        Vector4 position = GameObject.Find ("LeftEyeAnchor").transform.position;



        //Debug.Log (up + " " + right + " " + forward + " " + position);

        rendl.material.SetVector("_vec4up", up);

        rendr.material.SetVector("_vec4up", up);

        rendl.material.SetVector("_vec4right", right);

        rendr.material.SetVector("_vec4right", right);

        rendl.material.SetVector("_vec4forward", forward);

        rendr.material.SetVector("_vec4forward", forward);



        float x = Input.GetAxis ("Horizontal");

        float y = Input.GetAxis ("Vertical");



        float speed = 0.01f;

        this.transform.position -= GameObject.Find ("LeftEyeAnchor").transform.forward * y * speed;

        this.transform.position += GameObject.Find ("LeftEyeAnchor").transform.right * x * speed;

        rendl.material.SetVector("_vec4o", this.transform.position);

        rendr.material.SetVector("_vec4o", this.transform.position);

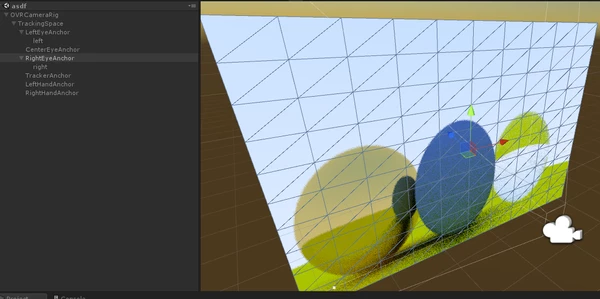

Here is a screen shot from the scene view
