glardon
New Participant
September 12, 2016

Unity3D GearVR viewport issue

Hi,

Working on a VR app for GearVR, we realized that our reticle seemed to be a little shiffted on the right.

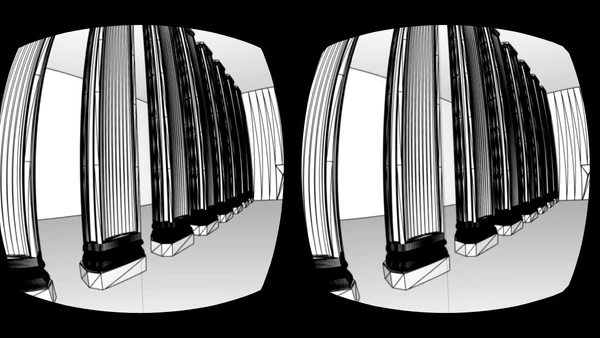

I tried to watch the phone screen outside the Gear and i realized that (have a look to the screenshot).

The screenshot was taken on a galaxy s7 edge, we have the same thing on a standard galaxy s7.



Is this a Unity bug (i'm on 5.4) ?
Does anybody have a tip to correct that ?

Thanks
    This topic has been closed for replies.

    4 replies

    vrdaveb
    Inspiring
    September 12, 2016
    If your goal is to have the reticle appear at the same point in the image for each eye, you should probably render it very far away from the user, with a shader that ignores the depth test. However, this will look wrong and make the user feel cross-eyed. Instead, it's more common to raycast from the Camera, along its look-at direction and draw the reticle/cursor at the point where the ray intersects with the scene. Have a look at https://developer3.oculus.com/blog/introducing-the-oculus-sample-framework-for-unity-5, for example.
    glardonAuthor
    New Participant
    September 12, 2016
    Hi,

    Thank you about the reticle. I'm doing like that now effectively.

    But is it normal that the scene, the left eye, is a cut on the left ?



    vrdaveb
    Inspiring
    September 12, 2016
    You mean the fact that the eye mesh is shifted slightly to the left of the image? Yes, that is to make it line up properly with the optics in the headset.
    glardonAuthor
    New Participant
    September 13, 2016
    OK, that is what i was thinking.
    Thank you for confirmation.
