Solved

ASW doesn't work even when enabled

I'm on the latest oculus branch of ue427, have enabled ASW in the rendering settings and I'm using Oculus Developer Hub to see ASW frames and they come out to 0.

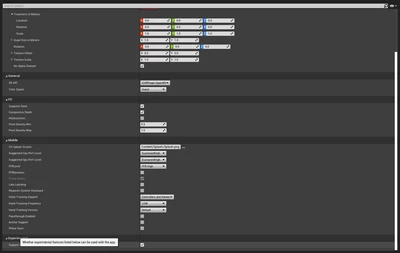

I've also enabled experimental features (which is in the wrong place in the plugin because it mentions options below it and there are none below it)



This topic has been closed for replies.
winning777Answer
Inspiring
September 12, 2023

I eventually fixed this by changing my HMD plugin priorities... you shouldn't have to turn off instanced stereo for any of this...

https://imaginegames.itch.io Let's make great games!
View in thread

7 replies

winning777Author
Inspiring
September 2, 2022

I've also enabled it in the device output and its prints out 1 saying it is enabled, but using ODH and turning on the ASW stats it never passes 0 frames meaning it never kicks on...

https://imaginegames.itch.io Let's make great games!
prozac
prozac
Meta Employee
September 22, 2022

Which stat are you looking at in ODH? I looked in the Performance Analyzer but didn't see anything AppSW related.

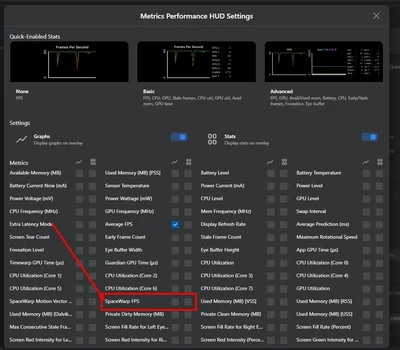

It should be super obvious when AppSW is enabled if you have OVRmetrics (aka Metrics HUD) open with Average FPS and SpaceWarp FPS.

winning777Author
Inspiring
September 22, 2022

thats what I'm using here, it shows off right now cause headset isn't connected but when its on it shows ASW frames 0

https://imaginegames.itch.io Let's make great games!
prozac
prozac
Meta Employee
September 22, 2022

If you are seeing the ASW FPS graph in the hud and it stays at 0, then ASW is definitely not on.



The step by step instructions are here:

https://developer.oculus.com/documentation/unreal/unreal-asw/#how-to-enable-appsw-in-app



tldr: In addition to the "Support Mobile Application Space Warp" checkbox, you need to enable Mobile Multiview, OVRPlugin OpenXR, and Vulkan. Then you need to set r.Mobile.Oculus.SpaceWarp.Enable=True via blueprint or config file.



You can also test it out by running this adb command:

adb shell "am broadcast -a android.intent.action.RUN -e cmd 'r.Mobile.Oculus.SpaceWarp.Enable 1'"

winning777Author
Inspiring
September 22, 2022

Yeah I had followed all the documentation, this is what that ADB command results in:

-------------------------
2022-09-22 18:01:15.683 ODH executing "adb shell "am broadcast -a android.intent.action.RUN -e cmd 'r.Mobile.Oculus.SpaceWarp.Enable 1'""...

Broadcasting: Intent { act=android.intent.action.RUN flg=0x400000 (has extras) }
Broadcast completed: result=0

https://imaginegames.itch.io Let's make great games!
prozac
prozac
Meta Employee
September 22, 2022

I get the same response when I run the command.

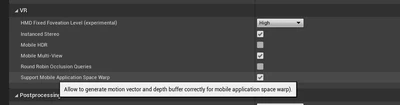

Try turning off Instanced Stereo. I see you have that checked in your screenshot, and I definitely don't have that enabled on my project.

winning777AuthorAnswer
Inspiring
September 12, 2023

I eventually fixed this by changing my HMD plugin priorities... you shouldn't have to turn off instanced stereo for any of this...

https://imaginegames.itch.io Let's make great games!
