Detect which hand(Left or Right) on component begin overlap[Solution]

  • May 14, 2025
  • 4 replies
  • 841 views

Hello Devs,

I am using Meta Interaction SDK(https://developers.meta.com/horizon/documentation/unreal/unreal-isdk-overview/) with Meta XR plugin 76 and Meta XR Interaction 76 with Unreal Engine 5.5.4

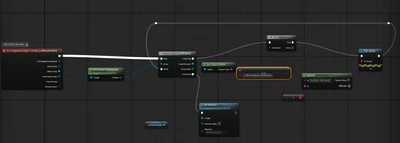

Please have a look at the BP screenshot how I implemented the hand detection on component begin overlap on static mesh.



If you know any better solution, Please share.

I hope this will help other devs. I would like to thanks to Meta Developer support for the motivation.

Saurabh Saxena

Follow me on Youtube(https://www.youtube.com/@DelhiTechnologyClub ) and Instagram(https://www.instagram.com/mesaurabhsaxena/ )


    This topic has been closed for replies.

    4 replies

    jgsampson1433451
    jgsampson1433451
    Meta Employee
    May 22, 2025

    If you're looking for a way that isn't string comparison, you could also try cast the overlapping component to an ISDKRigComponent, and call GetHandedness() from it, which will return an enum that you can compare of/select from.

    MeSaurabhSaxena
    MeSaurabhSaxenaAuthor
    Up and Coming
    May 22, 2025

    Thank you for the response. Overlapped component is giving me the static mesh on which I have on component begin overlap. But I need Hands.

    Saurabh Saxena

    Follow me on Youtube(https://www.youtube.com/@DelhiTechnologyClub ) Instagram(https://www.instagram.com/mesaurabhsaxena/ )

    jgsampson1433451
    jgsampson1433451
    Meta Employee
    May 22, 2025

    Are you getting a static mesh or the hand skeletal mesh? In the case of the latter, you could cast it to a UIsdkHandMeshComponent and call GetHandednessFromDataSource()

    MeSaurabhSaxena
    MeSaurabhSaxenaAuthor
    Up and Coming
    May 25, 2025

    In my case, I have a sphere in my level. When the user moves his hand into the sphere I need a trigger. That's why I am using on component begin overlap. And overlapped component is giving me static mesh.

    Saurabh Saxena

    Follow me on Youtube(https://www.youtube.com/@DelhiTechnologyClub ) Instagram(https://www.instagram.com/mesaurabhsaxena/ )
