Discovered anchors are placed at (0,0,0)

Hi there,

I'm trying to use MetaXR anchors for my current project. I previously used Unreal 5.1 with PCVR and I could create, save and reload anchors.

I am now trying to do the same in an Unreal 5.4 standalone project.

My problem is that when I save the anchor, and I reload it with its UUID, it spawns at (0,0,0).

Using the logcat from Android Studio, I found out that there were two errors, one pretty seamingless :

SP:AF:AnchorFramework: getAnchorUuid can't find anchor for handle 4

 And the second one, which I think is the real problem :

[XRCMD][failure] [XR_ERROR_SPACE_COMPONENT_NOT_ENABLED_FB]: xrLocateSpace(*(XrSpace*)space, baseSpace, ToXrTime(GetTimeInSeconds()), &spaceLocation), arvr\projects\integrations\OVRPlugin\Src\Util\CompositorOpenXR.cpp:13440 (arvr\\projects\\integrations\\OVRPlugin\\Src\Util/CompositorOpenXR.h:317

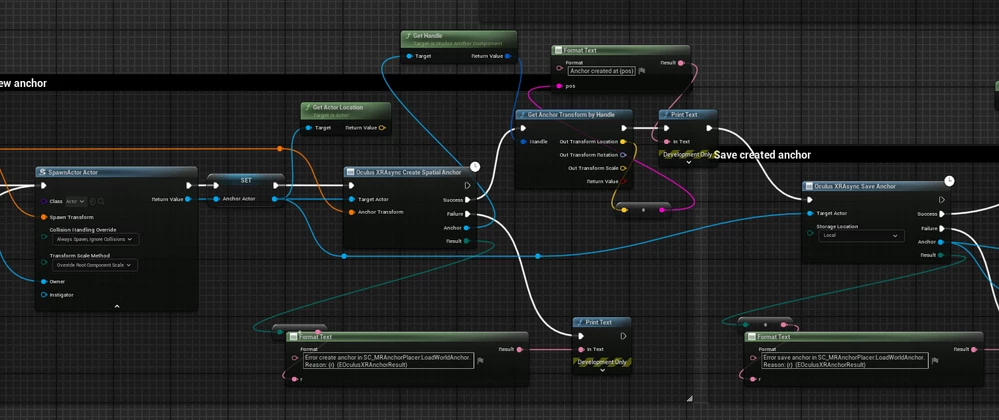

My blueprint is ugly right now, but here is how I discover and save anchors :

    This topic has been closed for replies.
    InscapeVTSAnswer
    New Participant
    September 13, 2024

    Well... I found it!

    There were two problems in what I made:

    - First, the spawned actor needs to have a component "OculusXRSpatialAnchor". This is not clearely written in the documentation, I thought that the MetaXR methods did that automatically.

    - Second, the spawned actor after a query "Spawn Oculus Anchor Actor" first instantiate the spawned actor at (0,0,0) and after a few frames moves it at its real position. Again, that is not written in the documentation.

    Hope that helps!

    View in thread

    2 replies

    InscapeVTSAuthorAnswer
    New Participant
    September 13, 2024

    Well... I found it!

    There were two problems in what I made:

    - First, the spawned actor needs to have a component "OculusXRSpatialAnchor". This is not clearely written in the documentation, I thought that the MetaXR methods did that automatically.

    - Second, the spawned actor after a query "Spawn Oculus Anchor Actor" first instantiate the spawned actor at (0,0,0) and after a few frames moves it at its real position. Again, that is not written in the documentation.

    Hope that helps!
