FabioWeltenbauer
New Participant
January 18, 2024

Unreal Spacial Anchor Sample not working as expected

Hello,

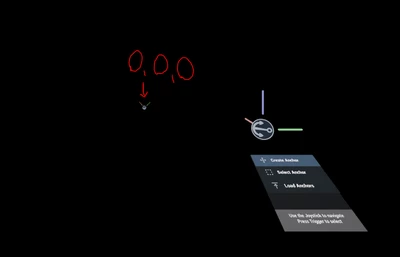

I am trying to get the unreal spacial anchor sample to work (https://github.com/oculus-samples/Unreal-SpatialAnchorsSample). But there happens to be a strange bug, which always sets my created marker on the position 0,0,0 in the level right after I created one and not on the position where it should appear. (see Image below)

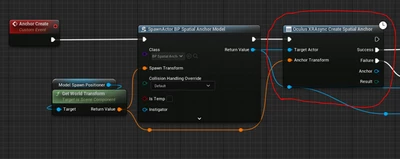

Everything else seems to work fine, I can save and load the markers, but they always appear at the same position. I already checked if the position gets set correctly, when spawning the spatial model, which is the case but after the Blueprint Node "Oculus XR Async Create Spatial Anchor" (which succeeds) the position reset happens and I also cant set it back again.


Has anyone any Idea why this happens? Does this only happen to me?

I am using Unreal Engine 5.3.2 and have the Meta XR Plugin v60 installed.
I am also getting the following errors in the console:

LogOVRPlugin: Error: [XRCMD][failure] [XR_ERROR_HANDLE_INVALID]: xrLocateSpace(*(XrSpace*)space, baseSpace, ToXrTime(GetTimeInSeconds()), &spaceLocation), arvr\projects\integrations\OVRPlugin\Src\Util\CompositorOpenXR.cpp:11833 (arvr\projects\integrations\OVRPlugin\Src\Util\CompositorOpenXR.h:302)
LogOVRPlugin: Error: [XRCMD][failure] [XR_ERROR_HANDLE_INVALID]: xrLocateSpace(*(XrSpace*)space, baseSpace, ToXrTime(GetTimeInSeconds()), &spaceLocation), arvr\projects\integrations\OVRPlugin\Src\Util\CompositorOpenXR.cpp:11833 (arvr\projects\integrations\OVRPlugin\Src\Util\CompositorOpenXR.h:302)


Thanks in advance for your help



This topic has been closed for replies.

4 replies

dariomaciel
Honored Contributor
January 19, 2024

it seems the reference of model spawn positioner is setting the transform value to 0,0,0. see if it references the proper actor. I think it should reference the right controller of the VR Pawn.

dariomaciel
Honored Contributor
January 19, 2024

try packaging your game. are you using vr preview or somehting?

FabioWeltenbauerAuthor
New Participant
January 19, 2024

The packaging works fine. But also in the Build I have the same problem...

I was using vr preview in the editor and also tried using the meta xr simulator, because in the official example here it even shows how the spacial anchor sample should work there right out of the box.

https://developer.oculus.com/documentation/unreal/xrsim-unreal
