Passthrough and hand tracking, hand size

Hi,

I managed to use both hand tracking and passthrough with new Unity2021.2.5, OculusXR plugin 1.11.0, XR Plugin Management 4.2.0.  🙂

But the hands are smaller then my own hands. OVR Custom Skelteon script with update root scale seams to do nothing.

Is there a way to have the hands the same size, like we have in quest home environment.

8 replies

Relykaa
Participant
December 11, 2021

Hi kshaja!

I'm trying to do basically the same - but even after lots of web and forum research, I can't quite get to the point to get the hand tracking up and running - Can you poke me in the right direction by any chance?

I'm trying to use OpenXR as an Plug-in Provider to reuse everything on other devices without further bridges, too. Is that my downfall? Given you use the OVRCustomSkeleton, I'm assuming you're using "Oculus" there instead?



For scaling your hands, the OVRHand could potentially provide you with the value you're searching for?

public struct HandState
{
   (...)
   public float HandScale;
   (...)
}

It'll only scale to a certain extend, and I remember it being somewhat limited for users with larger hands to never really reaching their true hand size. (This might be outdated though.)



Cheers!

kshajaAuthor
New Participant
December 11, 2021

Hi, thanks for advice, I will try it.

About my settings, yes I am using  Oculus as plugin provider.

Before I could not have passthrough and hands together. Hands were working in Oculus, and passthrough in OpenXR.
I tried it now with OpenXR and no hands no passthrough in the same app.

    Relykaa
    Participant
    December 11, 2021

    Urgs, thanks for checking! We'll see when these OpenXR presets really mature. Exciting, however, that it's backed by meta at any rate.

    elricdog
    New Participant
    December 11, 2021

    Hi, for me is the same. I have latest unity 2020, v35 on quest 2, OculusXR plugin 1.11.0, XR Plugin Management 4.2.0.

    Passtrough working (not on unity play mode, only with apk ("security restrictions?"))

    Handtracking not. Under XR Origin i pùt OVR Hand prefabs and makes my hands not visible, but Oculus Home widget can be called with fingers.

    I will update to "com.unity.xr.oculus": "2.0.0-preview.1" and latest unity 2021 to see if something changes

      kshajaAuthor
      New Participant
      December 12, 2021

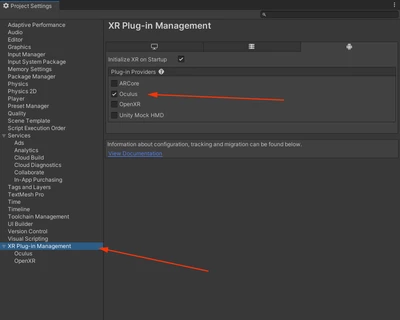

      Here are my settings:

      from dev pages

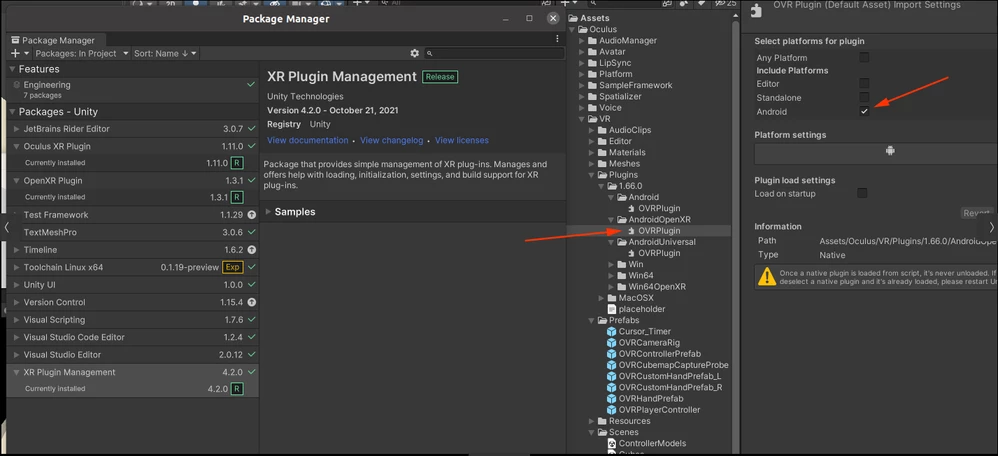

      1. To check whether OpenXR is enabled, in the Project window, expand Assets > Oculus > VR > Plugins > plugin version > AndroidOpenXR and click OvrPlugin. In the Inspector window, if the Android checkbox is selected, it indicates that OpenXR is enabled.

      https://developer.oculus.com/documentation/unity/unity-openxr/#switch-between-openxr-and-legacy-vrapi

      so it is using some kind of open xr it seams

      matesteinforth
      New Participant
      December 12, 2021

      tried the same settings/versions, but I can't see any hands.

      elricdog
      New Participant
      December 12, 2021

      I found the solution. I was using still v34. I re-download v35 and used ovrcustomhandsprefabs under xr origin. Root pose to yes and now all is working correctly.

      ildainria
      New Participant
      March 21, 2024

      Did you find any solution for the hand scaling not working ?
