Oculus Rendering seems off, what is wrong?
- 2 replies
- 1810 views
Hi,
I've written a sample application with SDKL, OpenGL and SDK 0.3.2 (https://github.com/gaultier/SDL2_OpenGL3.3_Sample). Simple scene, just a cube on a plane and a texture in the background.

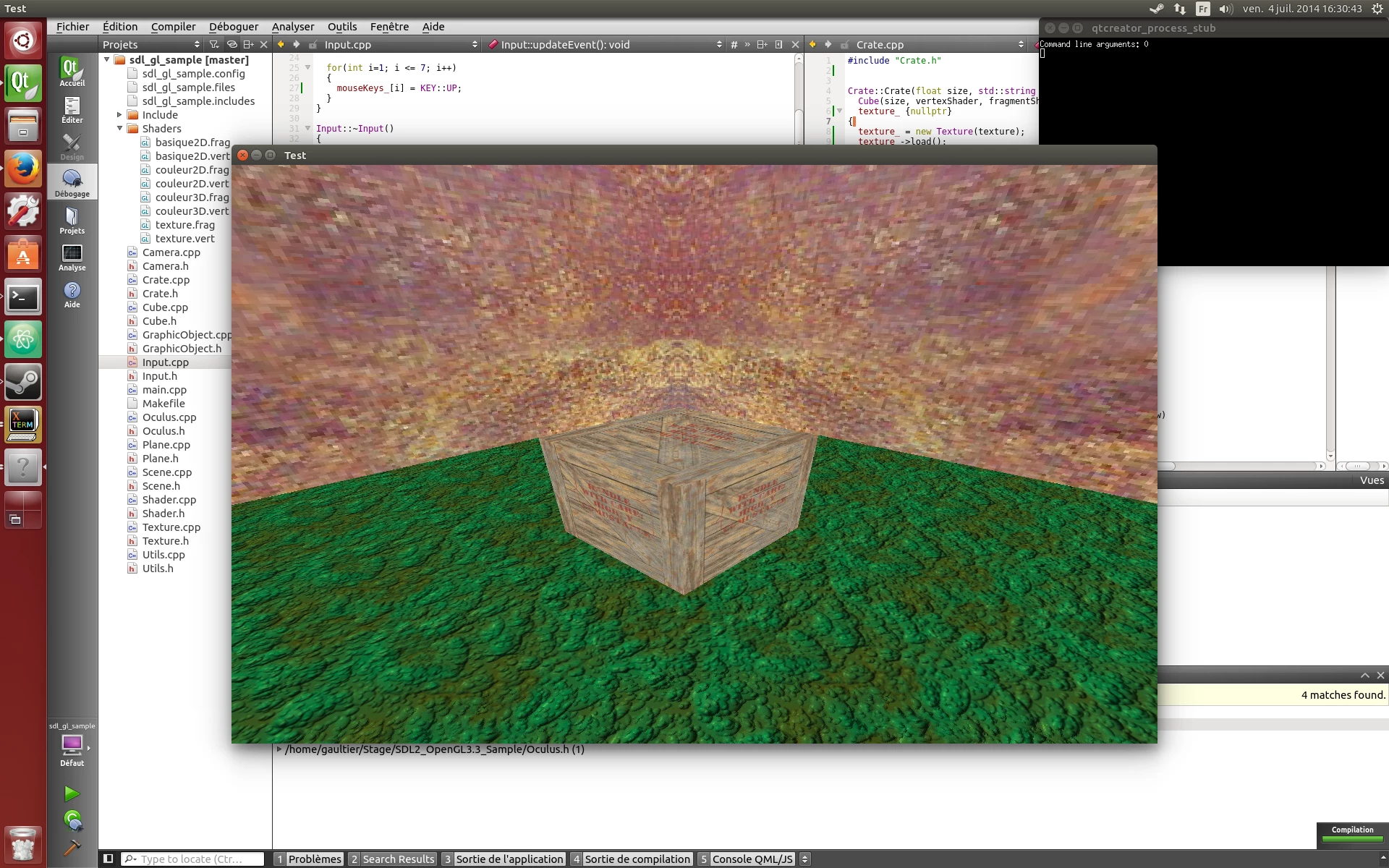

My rendering seems weird though (see file attached).

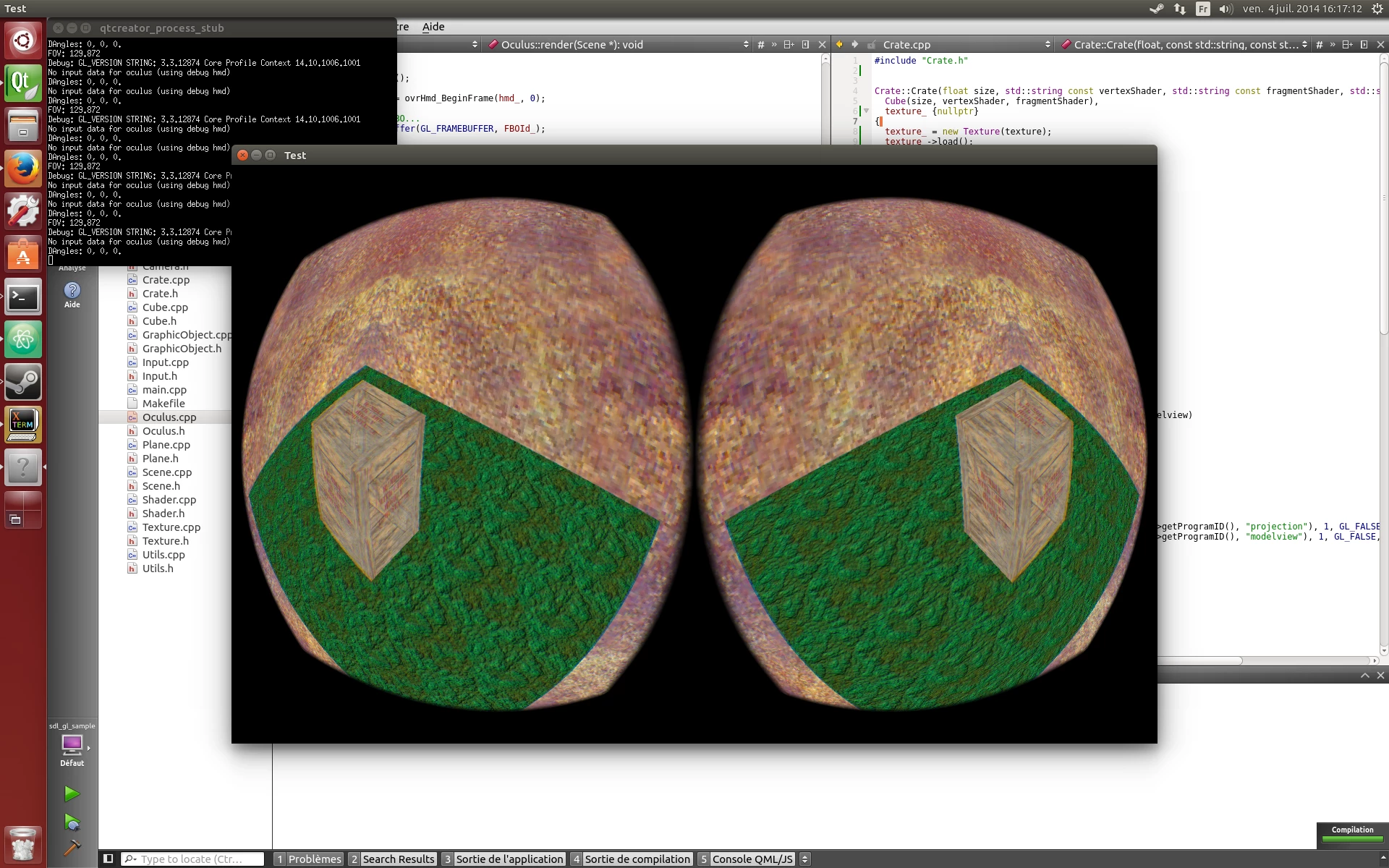

When I put the Oculus on, both images don't quite match up.
Someone told me I might be rendering the eyes inverted (ie right eye on left eye part and vice versa).
Can you tell me what's wrong?
Here's my rendering loop (simplified):
I'm sure the mistake is obvious but I don't see it.
Thanks for your help.
I've written a sample application with SDKL, OpenGL and SDK 0.3.2 (https://github.com/gaultier/SDL2_OpenGL3.3_Sample). Simple scene, just a cube on a plane and a texture in the background.
My rendering seems weird though (see file attached).
When I put the Oculus on, both images don't quite match up.
Someone told me I might be rendering the eyes inverted (ie right eye on left eye part and vice versa).
Can you tell me what's wrong?
Here's my rendering loop (simplified):
void Oculus::render(Scene * scene)
{
scene_ = scene;
computeSizes();
setCfg();
ovrBool configurationRes = ovrHmd_ConfigureRendering(hmd_, &cfg_.Config, distortionCaps_, eyeFov_, eyeRenderDesc_);
//Cannot configure OVR rendering
assert(configurationRes);
glBindBuffer(GL_ELEMENT_ARRAY_BUFFER, 0);
glBindBuffer(GL_ARRAY_BUFFER, 0);
glUseProgram(0);
setEyeTexture();
frameTiming_ = ovrHmd_BeginFrame(hmd_, 0);
// Bind the FBO...
glBindFramebuffer(GL_FRAMEBUFFER, FBOId_);
// Clear...
glClearColor(1, 1, 1, 1);
glClear(GL_COLOR_BUFFER_BIT | GL_DEPTH_BUFFER_BIT);
for (int eyeIndex =0; eyeIndex < ovrEye_Count ; eyeIndex++)
{
ovrEyeType eye = hmdDesc_.EyeRenderOrder[eyeIndex];
ovrPosef eyePose = ovrHmd_BeginEyeRender(hmd_, eye);
glViewport(eyeTexture_[eye].OGL.Header.RenderViewport.Pos.x,
eyeTexture_[eye].OGL.Header.RenderViewport.Pos.y,
eyeTexture_[eye].OGL.Header.RenderViewport.Size.w,
eyeTexture_[eye].OGL.Header.RenderViewport.Size.h
);
// Get Projection and ModelView matrici from the device...
OVR::Matrix4f projection = ovrMatrix4f_Projection(eyeRenderDesc_[eye].Fov, 0.3f, 100.0f, false);
OVR::Quatf orientation = OVR::Quatf(eyePose.Orientation);
OVR::Matrix4f modelView = OVR::Matrix4f(orientation.Inverted());
// Pass matrici on to OpenGL...
glMatrixMode(GL_PROJECTION);
glLoadIdentity();
glMultMatrixf(&(projection.Transposed().M[0][0]));
glMatrixMode(GL_MODELVIEW);
glLoadIdentity();
// Translate for specific eye based on IPD...
glTranslatef(eyeRenderDesc_[eye].ViewAdjust.x,
eyeRenderDesc_[eye].ViewAdjust.y,
eyeRenderDesc_[eye].ViewAdjust.z);
// Multiply with orientation retrieved from sensor...
glMultMatrixf(&(modelView.Transposed().M[0][0]));
scene_->render();
ovrHmd_EndEyeRender(hmd_, eye, eyePose, &eyeTexture_[eye].Texture);
}
ovrHmd_EndFrame(hmd_);
}
I'm sure the mistake is obvious but I don't see it.
Thanks for your help.
