360 Stereoscopic video and Multi-pass render mode

Hello there!

Have you made sure your draw calls are setup properly to support Multi-Pass rendering? These are usually handled properly by the engine, but this could be causing your issue. If this doesn't resolve your issue let me know so we can troubleshoot this further!

Hope this helps!

Thanks.

Unfortunaly my understanding of the technical intricacies is not that great.

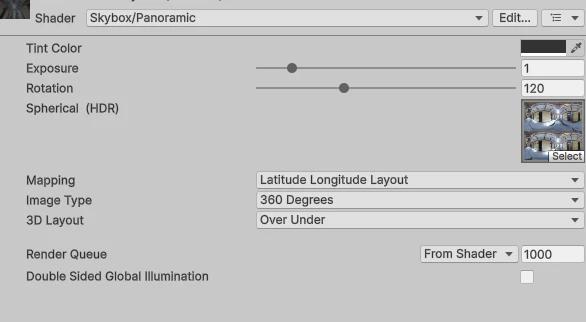

I'm working with a Unity panoramic skybox shader (code below), wich has the option to render in stereposcopic 3D (V360, VR180, top-bottom or above-below). Works great in multi-view but only monoscopic in multi-pass. The reason I need to use multi-pass mode is a Gausian Splatting renderer I'm working with requires it.

From research, it might have to do with how Unity handles the stereoEyeIndex in multipass mode. I'm using Unity 6 and the latest OpenXR plugin with Quest.

 It would be great to get some help if you can.

// Unity built-in shader source. Copyright (c) 2016 Unity Technologies. MIT license (see license.txt)

Shader "Skybox/PanoramicCustom" {
Properties {
    _Tint ("Tint Color", Color) = (.5, .5, .5, .5)
    [Gamma] _Exposure ("Exposure", Range(0, 8)) = 1.0
    _Rotation ("Rotation", Range(0, 360)) = 0
    [NoScaleOffset] _MainTex ("Spherical  (HDR)", 2D) = "grey" {}
    [KeywordEnum(6 Frames Layout, Latitude Longitude Layout)] _Mapping("Mapping", Float) = 1
    [Enum(360 Degrees, 0, 180 Degrees, 1)] _ImageType("Image Type", Float) = 0
    [Toggle] _MirrorOnBack("Mirror on Back", Float) = 0
    [Enum(None, 0, Side by Side, 1, Over Under, 2)] _Layout("3D Layout", Float) = 0
}

SubShader {
    Tags { "Queue"="Background" "RenderType"="Background" "PreviewType"="Skybox" }
    Cull Off ZWrite Off

    Pass {

        CGPROGRAM
        #pragma vertex vert
        #pragma fragment frag
        #pragma target 2.0
        #pragma multi_compile_local __ _MAPPING_6_FRAMES_LAYOUT

        #include "UnityCG.cginc"

        sampler2D _MainTex;
        float4 _MainTex_TexelSize;
        half4 _MainTex_HDR;
        half4 _Tint;
        half _Exposure;
        float _Rotation;
#ifndef _MAPPING_6_FRAMES_LAYOUT
        bool _MirrorOnBack;
        int _ImageType;
        int _Layout;
#endif

#ifndef _MAPPING_6_FRAMES_LAYOUT
        inline float2 ToRadialCoords(float3 coords)
        {
            float3 normalizedCoords = normalize(coords);
            float latitude = acos(normalizedCoords.y);
            float longitude = atan2(normalizedCoords.z, normalizedCoords.x);
            float2 sphereCoords = float2(longitude, latitude) * float2(0.5/UNITY_PI, 1.0/UNITY_PI);
            return float2(0.5,1.0) - sphereCoords;
        }
#endif

#ifdef _MAPPING_6_FRAMES_LAYOUT
        inline float2 ToCubeCoords(float3 coords, float3 layout, float4 edgeSize, float4 faceXCoordLayouts, float4 faceYCoordLayouts, float4 faceZCoordLayouts)
        {
            // Determine the primary axis of the normal
            float3 absn = abs(coords);
            float3 absdir = absn > float3(max(absn.y,absn.z), max(absn.x,absn.z), max(absn.x,absn.y)) ? 1 : 0;
            // Convert the normal to a local face texture coord [-1,+1], note that tcAndLen.z==dot(coords,absdir)
            // and thus its sign tells us whether the normal is pointing positive or negative
            float3 tcAndLen = mul(absdir, float3x3(coords.zyx, coords.xzy, float3(-coords.xy,coords.z)));
            tcAndLen.xy /= tcAndLen.z;
            // Flip-flop faces for proper orientation and normalize to [-0.5,+0.5]
            bool2 positiveAndVCross = float2(tcAndLen.z, layout.x) > 0;
            tcAndLen.xy *= (positiveAndVCross[0] ? absdir.yx : (positiveAndVCross[1] ? float2(absdir[2],0) : float2(0,absdir[2]))) - 0.5;
            // Clamp values which are close to the face edges to avoid bleeding/seams (ie. enforce clamp texture wrap mode)
            tcAndLen.xy = clamp(tcAndLen.xy, edgeSize.xy, edgeSize.zw);
            // Scale and offset texture coord to match the proper square in the texture based on layout.
            float4 coordLayout = mul(float4(absdir,0), float4x4(faceXCoordLayouts, faceYCoordLayouts, faceZCoordLayouts, faceZCoordLayouts));
            tcAndLen.xy = (tcAndLen.xy + (positiveAndVCross[0] ? coordLayout.xy : coordLayout.zw)) * layout.yz;
            return tcAndLen.xy;
        }
#endif

        float3 RotateAroundYInDegrees (float3 vertex, float degrees)
        {
            float alpha = degrees * UNITY_PI / 180.0;
            float sina, cosa;
            sincos(alpha, sina, cosa);
            float2x2 m = float2x2(cosa, -sina, sina, cosa);
            return float3(mul(m, vertex.xz), vertex.y).xzy;
        }

        struct appdata_t {
            float4 vertex : POSITION;
            UNITY_VERTEX_INPUT_INSTANCE_ID
        };

        struct v2f {
            float4 vertex : SV_POSITION;
            float3 texcoord : TEXCOORD0;
#ifdef _MAPPING_6_FRAMES_LAYOUT
            float3 layout : TEXCOORD1;
            float4 edgeSize : TEXCOORD2;
            float4 faceXCoordLayouts : TEXCOORD3;
            float4 faceYCoordLayouts : TEXCOORD4;
            float4 faceZCoordLayouts : TEXCOORD5;
#else
            float2 image180ScaleAndCutoff : TEXCOORD1;
            float4 layout3DScaleAndOffset : TEXCOORD2;
#endif
            UNITY_VERTEX_OUTPUT_STEREO
        };

        v2f vert (appdata_t v)
        {
            v2f o;
            UNITY_SETUP_INSTANCE_ID(v);
            UNITY_INITIALIZE_VERTEX_OUTPUT_STEREO(o);
            float3 rotated = RotateAroundYInDegrees(v.vertex, _Rotation);
            o.vertex = UnityObjectToClipPos(rotated);
            o.texcoord = v.vertex.xyz;
#ifdef _MAPPING_6_FRAMES_LAYOUT
            // layout and edgeSize are solely based on texture dimensions and can thus be precalculated in the vertex shader.
            float sourceAspect = float(_MainTex_TexelSize.z) / float(_MainTex_TexelSize.w);
            // Use the halfway point between the 1:6 and 3:4 aspect ratios of the strip and cross layouts to
            // guess at the correct format.
            bool3 aspectTest =
                sourceAspect >
                float3(1.0, 1.0f / 6.0f + (3.0f / 4.0f - 1.0f / 6.0f) / 2.0f, 6.0f / 1.0f + (4.0f / 3.0f - 6.0f / 1.0f) / 2.0f);
            // For a given face layout, the coordinates of the 6 cube faces are fixed: build a compact representation of the
            // coordinates of the center of each face where the first float4 represents the coordinates of the X axis faces,
            // the second the Y, and the third the Z. The first two float componenents (xy) of each float4 represent the face
            // coordinates on the positive axis side of the cube, and the second (zw) the negative.
            // layout.x is a boolean flagging the vertical cross layout (for special handling of flip-flops later)
            // layout.yz contains the inverse of the layout dimensions (ie. the scale factor required to convert from
            // normalized face coords to full texture coordinates)
            if (aspectTest[0]) // horizontal
            {
                if (aspectTest[2])
                { // horizontal strip
                    o.faceXCoordLayouts = float4(0.5,0.5,1.5,0.5);
                    o.faceYCoordLayouts = float4(2.5,0.5,3.5,0.5);
                    o.faceZCoordLayouts = float4(4.5,0.5,5.5,0.5);
                    o.layout = float3(-1,1.0/6.0,1.0/1.0);
                }
                else
                { // horizontal cross
                    o.faceXCoordLayouts = float4(2.5,1.5,0.5,1.5);
                    o.faceYCoordLayouts = float4(1.5,2.5,1.5,0.5);
                    o.faceZCoordLayouts = float4(1.5,1.5,3.5,1.5);
                    o.layout = float3(-1,1.0/4.0,1.0/3.0);
                }
            }
            else
            {
                if (aspectTest[1])
                { // vertical cross
                    o.faceXCoordLayouts = float4(2.5,2.5,0.5,2.5);
                    o.faceYCoordLayouts = float4(1.5,3.5,1.5,1.5);
                    o.faceZCoordLayouts = float4(1.5,2.5,1.5,0.5);
                    o.layout = float3(1,1.0/3.0,1.0/4.0);
                }
                else
                { // vertical strip
                    o.faceXCoordLayouts = float4(0.5,5.5,0.5,4.5);
                    o.faceYCoordLayouts = float4(0.5,3.5,0.5,2.5);
                    o.faceZCoordLayouts = float4(0.5,1.5,0.5,0.5);
                    o.layout = float3(-1,1.0/1.0,1.0/6.0);
                }
            }
            // edgeSize specifies the minimum (xy) and maximum (zw) normalized face texture coordinates that will be used for
            // sampling in the texture. Setting these to the effective size of a half pixel horizontally and vertically
            // effectively enforces clamp mode texture wrapping for each individual face.
            o.edgeSize.xy = _MainTex_TexelSize.xy * 0.5 / o.layout.yz - 0.5;
            o.edgeSize.zw = -o.edgeSize.xy;
#else // !_MAPPING_6_FRAMES_LAYOUT
            // Calculate constant horizontal scale and cutoff for 180 (vs 360) image type
            if (_ImageType == 0)  // 360 degree
                o.image180ScaleAndCutoff = float2(1.0, 1.0);
            else  // 180 degree
                o.image180ScaleAndCutoff = float2(2.0, _MirrorOnBack ? 1.0 : 0.5);
            // Calculate constant scale and offset for 3D layouts
            if (_Layout == 0) // No 3D layout
                o.layout3DScaleAndOffset = float4(0,0,1,1);
            else if (_Layout == 1) // Side-by-Side 3D layout
                o.layout3DScaleAndOffset = float4(unity_StereoEyeIndex,0,0.5,1);
            else // Over-Under 3D layout
                o.layout3DScaleAndOffset = float4(0, 1-unity_StereoEyeIndex,1,0.5);
#endif
            return o;
        }

        fixed4 frag (v2f i) : SV_Target
        {
#ifdef _MAPPING_6_FRAMES_LAYOUT
            float2 tc = ToCubeCoords(i.texcoord, i.layout, i.edgeSize, i.faceXCoordLayouts, i.faceYCoordLayouts, i.faceZCoordLayouts);
#else
            float2 tc = ToRadialCoords(i.texcoord);
            if (tc.x > i.image180ScaleAndCutoff[1])
                return half4(0,0,0,1);
            tc.x = fmod(tc.x*i.image180ScaleAndCutoff[0], 1);
            tc = (tc + i.layout3DScaleAndOffset.xy) * i.layout3DScaleAndOffset.zw;
#endif

            half4 tex = tex2D (_MainTex, tc);
            half3 c = DecodeHDR (tex, _MainTex_HDR);
            c = c * _Tint.rgb * unity_ColorSpaceDouble.rgb;
            c *= _Exposure;
            return half4(c, 1);
        }
        ENDCG
    }
}


CustomEditor "SkyboxPanoramicShaderGUI"
Fallback Off

}

It sounds like multi-pass may be collapsing both eyes into a single view, which is why you’re seeing monoscopic output. You could try switching to single-pass instanced rendering to preserve stereoscopy or double-check that your camera rig is still outputting separate eye textures.

Here’s a related thread that might help: https://communityforums.atmeta.com/discussions/dev-pcvr/howto-blender-prerendered-estate agents-equirectangular-stereoscopic/306326/replies/306334

Based on our investigation, Unity may be able to solve your issue with Multi-Pass from their end. I recommend reaching out directly to Unity’s support team for further assistance with this issue.

Let us know if you have any additional implementation questions!
