Distance Hand Grab building block in Unity

6 replies
426 views

I'm using the new distance hand grab building block with Grab Relative Too Hand set on import to my Unity project.

All works fine for objects close to hand but I need to grab an object further away and it seems to have a very limited distance range function.

The documentation suggests I can change the distance in the SelectrumFustrum function but I'm unable to find where that is.

Can anyone point me in the right direction please.

R

RayNgXRBootcampAnswer

Participant

For hands, the above steps are very similar except the component you are looking for instead is "Distance Hand Grab Interactor", which should be parented under "Hand and No Controller" game object.

R

RayNgXRBootcamp

Participant

Hi BwanaSamaki ! From your "Distance Grab Interactor" scene component, select "Distant Candidate Computer" -> "Detection Frustums" -> "Selection Frustum" component object. It contains the "Conical Frustum" component which you can adjust properties such as Min/Max Length, Radius Start, and Aperture Degrees.

I believe this is exactly what you are looking for - let us know if this helps! 😄

R

RayNgXRBootcamp

Participant

Hi BwanaSamaki ! From your "Distance Grab Interactor" scene component, select "Distant Candidate Computer" -> "Detection Frustums" -> "Selection Frustum" component object. It contains the "Conical Frustum" component which you can adjust properties such as Min/Max Length, Radius Start, and Aperture Degrees.

I believe this is exactly what you are looking for - let us know if this helps! 😄

B

BwanaSamakiAuthor

New Participant

Aha! Very helpful. Thank you. However I can only find the fustrum on the "Controller and no Hand" element. I've tried duplicating this and adding it to "Hand" and "Hand no Controller" but no luck so far.

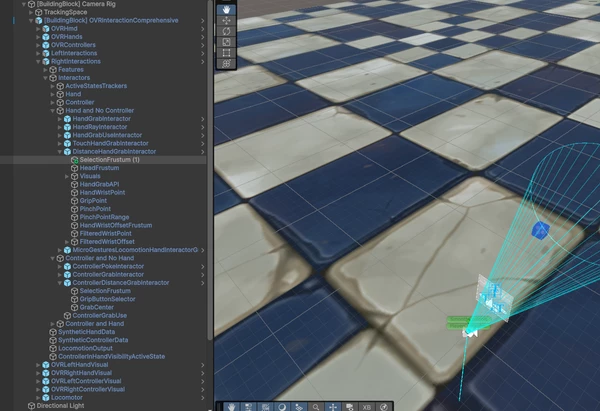

Any suggestions? Here's how my CameraRig building block looks.

R

RayNgXRBootcampAnswer

Participant

For hands, the above steps are very similar except the component you are looking for instead is "Distance Hand Grab Interactor", which should be parented under "Hand and No Controller" game object.

B

BwanaSamakiAuthor

New Participant

Finally found it 😀. Its actually hidden under Filtered Wrist Offset.

Many thanks!
