Meta XR Simulator Crashes

  • August 14, 2023
  • 4 replies
  • 7284 views

Hello, Im trying to get the Meta XR Simulator(https://developer.oculus.com/documentation/unity/tools-meta-xr-sim/?intern_source=devblog&intern_content=boost-iteration-efficiency-meta-xr-simulator-experimental) up and running but it crashes as soon as I try and launch it.  From the Oculus SDK I am trying to launch the Cubes scene with no luck.

Im using Unity version 2022.3.5f1 along with the latest versions of the Oculus XR Plugin and OpenXR Plugins.  Regardless of which Plugin provider I use(Oculus or OpenXR), the tool crashes Unity as soon as it starts.



Is there anything I might have missed setting up in order to get this simulator working?  Any help would be much appreciated.

    Best answer by mtucker2112

    For anyone else, we figured out that by installing the SDK and the Simulator using a scope registry instead of downloading them like the tutorials say (e.g. https://developer.oculus.com/documentation/unity/unity-tutorial-hello-vr/) things work.

    The trick is that the SDK is found with this scope registry:

    Url: https://npm.developer.oculus.com
    Scopes: com.meta.xr.sdk

    And the simulator is found with this registry:

    URL: https://npm.developer.oculus.com
    Scopes: com.meta.xr.simulator

    Also, when using the latest LTS of Unity (2022.3.7f1) the only versions that don't crash are these ones:





    4 replies

    mtucker2112
    New Participant
    August 17, 2023

    We have the same issue, and have tried several different LTS versions of Unity.  All with the latest Meta XR simulator package and the latest Oculus Integration SDK package.

    None of the sample scenes work with the simulator, they all crash Unity and in the Editor.log from C:\Users\[user]\AppData\Local\Temp\Unity\Editor\Crashes we see this:



     =================================================================
    Native Crash Reporting
    =================================================================
    Got a UNKNOWN while executing native code. This usually indicates
    a fatal error in the mono runtime or one of the native libraries
    used by your application.
    =================================================================

    =================================================================
    Managed Stacktrace:
    =================================================================
    =================================================================
    Received signal SIGSEGV
    Obtained 19 stack frames
    0x00007ffd046e2375 (OVRPlugin) ovrp_UnityOpenXR_OnSessionDestroy
    0x00007ffd046a48f8 (OVRPlugin) ovrp_Update3
    0x00007ffd20a2410a (OculusXRPlugin) XRSDKPreInit
    0x00007ffd20a3180e (OculusXRPlugin) SetSpaceWarp
    0x00007ff731c69e08 (Unity) XRInputSubsystem::Update
    0x00007ff731c59b71 (Unity) XRInputSubsystemManager::Update
    0x00007ff73049f3a9 (Unity) CallbackArray::Invoke
    0x00007ff731c40556 (Unity) `XREngineCallbacks::XREngineCallbacks'::`2'::EarlyUpdateXRUpdateRegistrator::Forward
    0x00007ff730f2fbda (Unity) ExecutePlayerLoop
    0x00007ff730f2fd66 (Unity) ExecutePlayerLoop
    0x00007ff730f36625 (Unity) PlayerLoop
    0x00007ff731ef2cbf (Unity) PlayerLoopController::InternalUpdateScene
    0x00007ff731eff89d (Unity) PlayerLoopController::UpdateSceneIfNeededFromMainLoop
    0x00007ff731efdba1 (Unity) Application::TickTimer
    0x00007ff73237180a (Unity) MainMessageLoop
    0x00007ff732376910 (Unity) WinMain
    0x00007ff73376133e (Unity) __scrt_common_main_seh
    0x00007ffd9bc37614 (KERNEL32) BaseThreadInitThunk
    0x00007ffd9db626b1 (ntdll) RtlUserThreadStart

      mtucker2112Answer
      New Participant
      August 18, 2023

      For anyone else, we figured out that by installing the SDK and the Simulator using a scope registry instead of downloading them like the tutorials say (e.g. https://developer.oculus.com/documentation/unity/unity-tutorial-hello-vr/) things work.

      The trick is that the SDK is found with this scope registry:

      Url: https://npm.developer.oculus.com
      Scopes: com.meta.xr.sdk

      And the simulator is found with this registry:

      URL: https://npm.developer.oculus.com
      Scopes: com.meta.xr.simulator

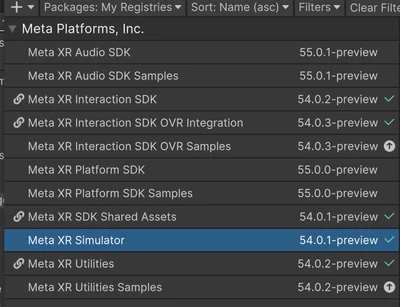

      Also, when using the latest LTS of Unity (2022.3.7f1) the only versions that don't crash are these ones:





        julienkay
        Honored Contributor
        September 6, 2023

        Thanks for posting the answer. I had the exact same issues in Unity 2022.3.7f1 with com.meta.xr.simulator v54.0.1-preview. Downgrading the other com.meta.xr.sdk.utilities package to v54.0.1-preview fixed the crashes for me (i.e. don't use the latest v56.0.0-preview)
