RenderDoc Meta Fork 68.11 Mac OS Crashing on Startup
- June 5, 2025
- 1 reply
- 463 views

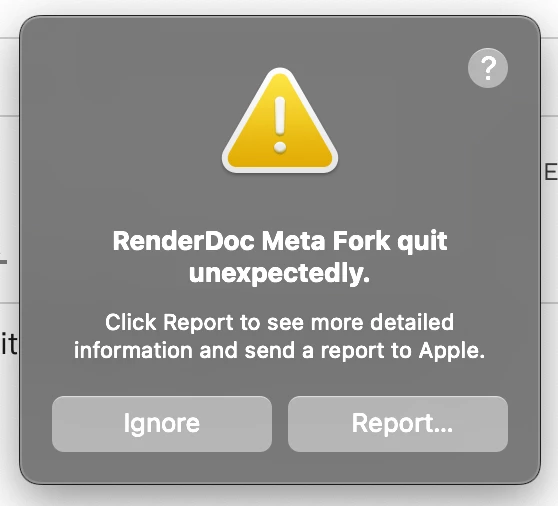

I've been using the previous version 1.34 (I believe). Outside of known issues, it was working as expected. After installing 68.11, it crashes on startup 100% of the launch attempts. I've reinstalled multiple times and restarted my computer. I am on m4 macbook pro, mac os version 15.3.1 (24D70). I am able to revert to 68.2 with success.
I'm pasting the Apple Crash Log here:
-------------------------------------
Translated Report (Full Report Below)
-------------------------------------
Process: qrenderdoc [1243]
Path: /Applications/RenderDoc Meta Fork.app/Contents/MacOS/qrenderdoc
Identifier: com.oculus.renderdocmetafork
Version: 68.11 (???)
Code Type: ARM-64 (Native)
Parent Process: launchd [1]
User ID: 501
Date/Time: 2025-06-05 14:43:32.9585 -0700
OS Version: macOS 15.3.1 (24D70)
Report Version: 12
Anonymous UUID: 6D2E7FE7-09AF-30DA-0547-816ACB0758F9
Time Awake Since Boot: 650 seconds
System Integrity Protection: enabled
Crashed Thread: 0
Exception Type: EXC_CRASH (SIGABRT)
Exception Codes: 0x0000000000000000, 0x0000000000000000
Termination Reason: Namespace DYLD, Code 4 Symbol missing
Symbol not found: ___cxa_decrement_exception_refcount
Referenced from: <76E2CA00-7F6F-3326-9E95-4242EF4416F2> /Applications/RenderDoc Meta Fork.app/Contents/lib/librenderdoc.dylib
Expected in: <BBAB286C-2E51-3D64-9AE3-A4102935FE32> /usr/lib/libc++.1.dylib
(terminated at launch; ignore backtrace)
Thread 0 Crashed:
0 dyld 0x18ec57ed0 __abort_with_payload + 8
1 dyld 0x18ec5f1f4 abort_with_payload_wrapper_internal + 104
2 dyld 0x18ec5f228 abort_with_payload + 16
3 dyld 0x18ebf91d4 dyld4::halt(char const*, dyld4::StructuredError const*) + 300
4 dyld 0x18ebf5ba0 dyld4::prepare(dyld4::APIs&, dyld3::MachOAnalyzer const*) + 3996
5 dyld 0x18ebf4bc0 dyld4::start(dyld4::KernelArgs*, void*, void*)::$_0::operator()() const + 544
6 dyld 0x18ebf405c start + 2304
Thread 0 crashed with ARM Thread State (64-bit):
x0: 0x0000000000000006 x1: 0x0000000000000004 x2: 0x000000016b9215a0 x3: 0x0000000000000096
x4: 0x000000016b9211a0 x5: 0x0000000000000000 x6: 0x0000000000000000 x7: 0x000000016b920200
x8: 0x0000000000000020 x9: 0x000000016b921110 x10: 0x000000000000000a x11: 0x0000000000000000
x12: 0x0000000000000031 x13: 0x0000000000000000 x14: 0x000000020a655e7b x15: 0x000000016b923ca0
x16: 0x0000000000000209 x17: 0x000000018ebf1354 x18: 0x0000000000000000 x19: 0x0000000000000000
x20: 0x000000016b9211a0 x21: 0x0000000000000096 x22: 0x000000016b9215a0 x23: 0x0000000000000004
x24: 0x0000000000000006 x25: 0x00000000000012a0 x26: 0x00000001f864b570 x27: 0x000000016b923180
x28: 0x000000016b9230a0 fp: 0x000000016b921170 lr: 0x000000018ec5f1f4
sp: 0x000000016b921130 pc: 0x000000018ec57ed0 cpsr: 0x80000000
far: 0x0000000000000000 esr: 0x56000080 Address size fault
Binary Images:
0x1044cc000 - 0x1059a3fff com.oculus.renderdocmetafork (68.11) <c9a5da7d-088f-3d75-8473-98627cdb5740> /Applications/RenderDoc Meta Fork.app/Contents/MacOS/qrenderdoc
0x18ebee000 - 0x18ec6ff3f dyld (*) <398a133c-9bcb-317f-a064-a40d3cea3c0f> /usr/lib/dyld
0x0 - 0xffffffffffffffff ??? (*) <00000000-0000-0000-0000-000000000000> ???
External Modification Summary:
Calls made by other processes targeting this process:
task_for_pid: 0
thread_create: 0
thread_set_state: 0
Calls made by this process:
task_for_pid: 0
thread_create: 0
thread_set_state: 0
Calls made by all processes on this machine:
task_for_pid: 0
thread_create: 0
thread_set_state: 0
VM Region Summary:
ReadOnly portion of Libraries: Total=637.4M resident=0K(0%) swapped_out_or_unallocated=637.4M(100%)
Writable regions: Total=9664K written=112K(1%) resident=112K(1%) swapped_out=0K(0%) unallocated=9552K(99%)
VIRTUAL REGION
REGION TYPE SIZE COUNT (non-coalesced)
=========== ======= =======
STACK GUARD 56.0M 1
Stack 8176K 1
VM_ALLOCATE 16K 1
VM_ALLOCATE (reserved) 1312K 2 reserved VM address space (unallocated)
__DATA 1387K 3
__DATA_CONST 504K 2
__DATA_DIRTY 7K 1
__LINKEDIT 616.1M 2
__TEXT 21.4M 2
__TPRO_CONST 272K 1
mapped file 33.2M 7
page table in kernel 112K 1
=========== ======= =======
TOTAL 738.2M 24
TOTAL, minus reserved VM space 736.9M 24
-----------
Full Report
-----------
{"app_name":"qrenderdoc","timestamp":"2025-06-05 14:43:32.00 -0700","app_version":"68.11","slice_uuid":"c9a5da7d-088f-3d75-8473-98627cdb5740","build_version":"","platform":1,"bundleID":"com.oculus.renderdocmetafork","share_with_app_devs":0,"is_first_party":0,"bug_type":"309","os_version":"macOS 15.3.1 (24D70)","roots_installed":0,"name":"qrenderdoc","incident_id":"4FDA6C0E-BC86-4169-8B13-6FECAE8C3BF8"}
{
"uptime" : 650,
"procRole" : "Default",
"version" : 2,
"userID" : 501,
"deployVersion" : 210,
"modelCode" : "Mac16,8",
"coalitionID" : 1077,
"osVersion" : {
"train" : "macOS 15.3.1",
"build" : "24D70",
"releaseType" : "User"
},
"captureTime" : "2025-06-05 14:43:32.9585 -0700",
"codeSigningMonitor" : 2,
"incident" : "4FDA6C0E-BC86-4169-8B13-6FECAE8C3BF8",
"pid" : 1243,
"translated" : false,
"cpuType" : "ARM-64",
"roots_installed" : 0,
"bug_type" : "309",
"procLaunch" : "2025-06-05 14:43:32.9218 -0700",
"procStartAbsTime" : 15770844648,
"procExitAbsTime" : 15771713379,
"procName" : "qrenderdoc",
"procPath" : "\/Applications\/RenderDoc Meta Fork.app\/Contents\/MacOS\/qrenderdoc",
"bundleInfo" : {"CFBundleShortVersionString":"68.11","CFBundleIdentifier":"com.oculus.renderdocmetafork"},
"storeInfo" : {"deviceIdentifierForVendor":"C0301A3C-A28F-5EC3-A697-197728A6CB70","thirdParty":true},
"parentProc" : "launchd",
"parentPid" : 1,
"coalitionName" : "com.oculus.renderdocmetafork",
"crashReporterKey" : "6D2E7FE7-09AF-30DA-0547-816ACB0758F9",
"codeSigningID" : "com.oculus.renderdocmetafork",
"codeSigningTeamID" : "HXH6UQBHD4",
"codeSigningFlags" : 570499857,
"codeSigningValidationCategory" : 6,
"codeSigningTrustLevel" : 4294967295,
"instructionByteStream" : {"beforePC":"5AAAACABAAAoAQAAMAEAADgBAABAAQAASAEAAGQBAAAwQYDSARAA1A==","atPC":"AwEAVH8jA9X9e7+p\/QMAkeBj\/pe\/AwCR\/XvBqP8PX9bAA1\/WEC2A0g=="},
"bootSessionUUID" : "CC7896FF-0E46-456C-9CA6-DF127516A84C",
"sip" : "enabled",
"exception" : {"codes":"0x0000000000000000, 0x0000000000000000","rawCodes":[0,0],"type":"EXC_CRASH","signal":"SIGABRT"},
"termination" : {"code":4,"flags":518,"namespace":"DYLD","indicator":"Symbol missing","details":["(terminated at launch; ignore backtrace)"],"reasons":["Symbol not found: ___cxa_decrement_exception_refcount","Referenced from: <76E2CA00-7F6F-3326-9E95-4242EF4416F2> \/Applications\/RenderDoc Meta Fork.app\/Contents\/lib\/librenderdoc.dylib","Expected in: <BBAB286C-2E51-3D64-9AE3-A4102935FE32> \/usr\/lib\/libc++.1.dylib"]},
"extMods" : {"caller":{"thread_create":0,"thread_set_state":0,"task_for_pid":0},"system":{"thread_create":0,"thread_set_state":0,"task_for_pid":0},"targeted":{"thread_create":0,"thread_set_state":0,"task_for_pid":0},"warnings":0},
"faultingThread" : 0,
"threads" : [{"triggered":true,"id":20294,"threadState":{"x":[{"value":6},{"value":4},{"value":6099703200},{"value":150},{"value":6099702176},{"value":0},{"value":0},{"value":6099698176},{"value":32},{"value":6099702032},{"value":10},{"value":0},{"value":49},{"value":0},{"value":8764350075},{"value":6099713184},{"value":521},{"value":6689854292,"symbolLocation":420,"symbol":"__simple_bprintf"},{"value":0},{"value":0},{"value":6099702176},{"value":150},{"value":6099703200},{"value":4},{"value":6},{"value":4768},{"value":8462316912,"symbolLocation":13600,"symbol":"dyld4::preallocator"},{"value":6099710336},{"value":6099710112}],"flavor":"ARM_THREAD_STATE64","lr":{"value":6690304500},"cpsr":{"value":2147483648},"fp":{"value":6099702128},"sp":{"value":6099702064},"esr":{"value":1442840704,"description":" Address size fault"},"pc":{"value":6690275024,"matchesCrashFrame":1},"far":{"value":0}},"frames":[{"imageOffset":433872,"symbol":"__abort_with_payload","symbolLocation":8,"imageIndex":1},{"imageOffset":463348,"symbol":"abort_with_payload_wrapper_internal","symbolLocation":104,"imageIndex":1},{"imageOffset":463400,"symbol":"abort_with_payload","symbolLocation":16,"imageIndex":1},{"imageOffset":45524,"symbol":"dyld4::halt(char const*, dyld4::StructuredError const*)","symbolLocation":300,"imageIndex":1},{"imageOffset":31648,"symbol":"dyld4::prepare(dyld4::APIs&, dyld3::MachOAnalyzer const*)","symbolLocation":3996,"imageIndex":1},{"imageOffset":27584,"symbol":"dyld4::start(dyld4::KernelArgs*, void*, void*)::$_0::operator()() const","symbolLocation":544,"imageIndex":1},{"imageOffset":24668,"symbol":"start","symbolLocation":2304,"imageIndex":1}]}],
"usedImages" : [
{
"source" : "P",
"arch" : "arm64",
"base" : 4367106048,
"CFBundleShortVersionString" : "68.11",
"CFBundleIdentifier" : "com.oculus.renderdocmetafork",
"size" : 21856256,
"uuid" : "c9a5da7d-088f-3d75-8473-98627cdb5740",
"path" : "\/Applications\/RenderDoc Meta Fork.app\/Contents\/MacOS\/qrenderdoc",
"name" : "qrenderdoc"
},
{
"source" : "P",
"arch" : "arm64e",
"base" : 6689841152,
"size" : 532288,
"uuid" : "398a133c-9bcb-317f-a064-a40d3cea3c0f",
"path" : "\/usr\/lib\/dyld",
"name" : "dyld"
},
{
"size" : 0,
"source" : "A",
"base" : 0,
"uuid" : "00000000-0000-0000-0000-000000000000"
}
],
"sharedCache" : {
"base" : 6689030144,
"size" : 4865835008,
"uuid" : "d272b91e-f9f0-3854-b5b9-508b21c25dcc"
},
"vmSummary" : "ReadOnly portion of Libraries: Total=637.4M resident=0K(0%) swapped_out_or_unallocated=637.4M(100%)\nWritable regions: Total=9664K written=112K(1%) resident=112K(1%) swapped_out=0K(0%) unallocated=9552K(99%)\n\n VIRTUAL REGION \nREGION TYPE SIZE COUNT (non-coalesced) \n=========== ======= ======= \nSTACK GUARD 56.0M 1 \nStack 8176K 1 \nVM_ALLOCATE 16K 1 \nVM_ALLOCATE (reserved) 1312K 2 reserved VM address space (unallocated)\n__DATA 1387K 3 \n__DATA_CONST 504K 2 \n__DATA_DIRTY 7K 1 \n__LINKEDIT 616.1M 2 \n__TEXT 21.4M 2 \n__TPRO_CONST 272K 1 \nmapped file 33.2M 7 \npage table in kernel 112K 1 \n=========== ======= ======= \nTOTAL 738.2M 24 \nTOTAL, minus reserved VM space 736.9M 24 \n",
"legacyInfo" : {
"threadTriggered" : {
}
},
"logWritingSignature" : "dfb108b19a20048192d4e81756c901d9f82dd79d",
"trialInfo" : {
"rollouts" : [
{
"rolloutId" : "67648e5334a82511f4acf879",
"factorPackIds" : {
},
"deploymentId" : 240000008
},
{
"rolloutId" : "6761d0c9df60af01adb250fb",
"factorPackIds" : {
},
"deploymentId" : 240000009
}
],
"experiments" : [
]
}
}
Model: Mac16,8, BootROM 11881.81.4, proc 12:8:4 processors, 24 GB, SMC
Graphics: Apple M4 Pro, Apple M4 Pro, Built-In
Display: Color LCD, 3024 x 1964 Retina, Main, MirrorOff, Online
Memory Module: LPDDR5, Micron
AirPort: spairport_wireless_card_type_wifi (0x14E4, 0x4388), wl0: Oct 31 2024 06:19:10 version 23.10.900.20.41.51.176 FWID 01-be2c8114
IO80211_driverkit-1345.10 "IO80211_driverkit-1345.10" Dec 14 2024 17:47:07
AirPort:
Bluetooth: Version (null), 0 services, 0 devices, 0 incoming serial ports
Network Service: Wi-Fi, AirPort, en0
USB Device: USB31Bus
USB Device: USB31Bus
USB Device: USB31Bus
Thunderbolt Bus: MacBook Pro, Apple Inc.
Thunderbolt Bus: MacBook Pro, Apple Inc.
Thunderbolt Bus: MacBook Pro, Apple Inc.
